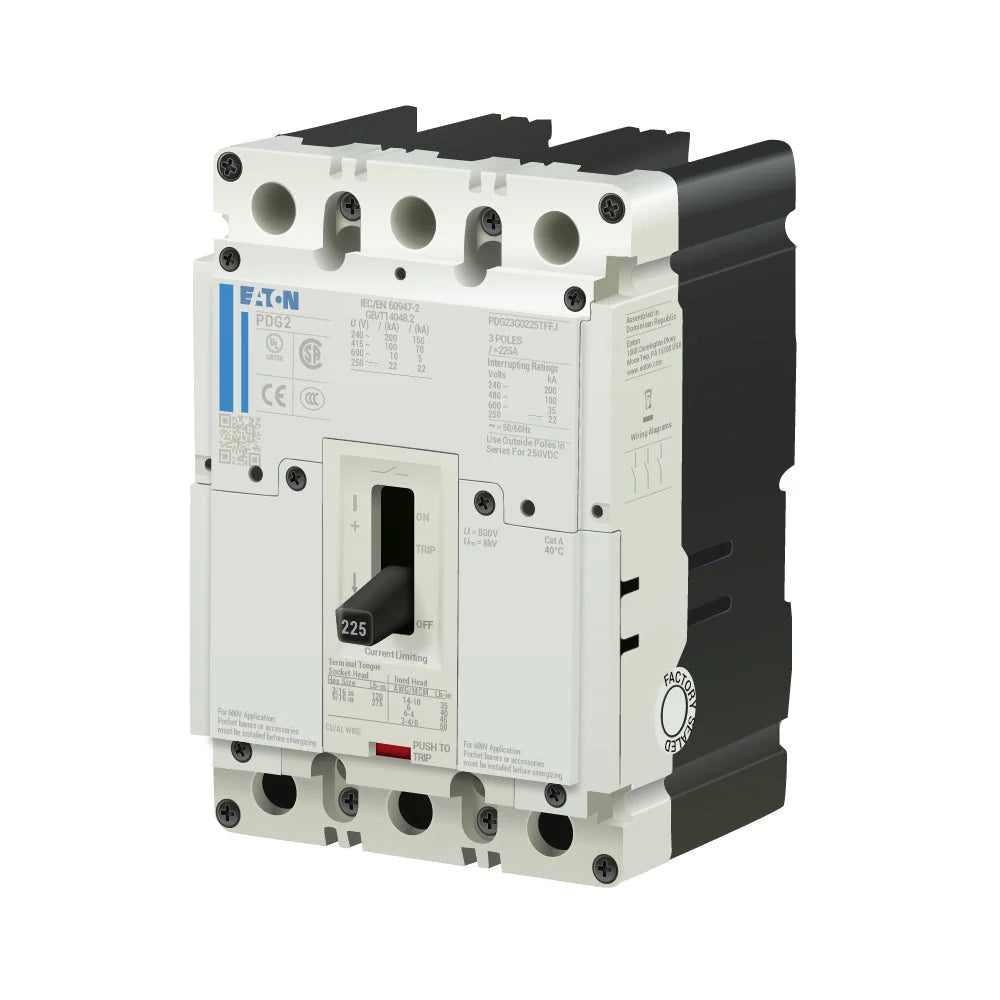

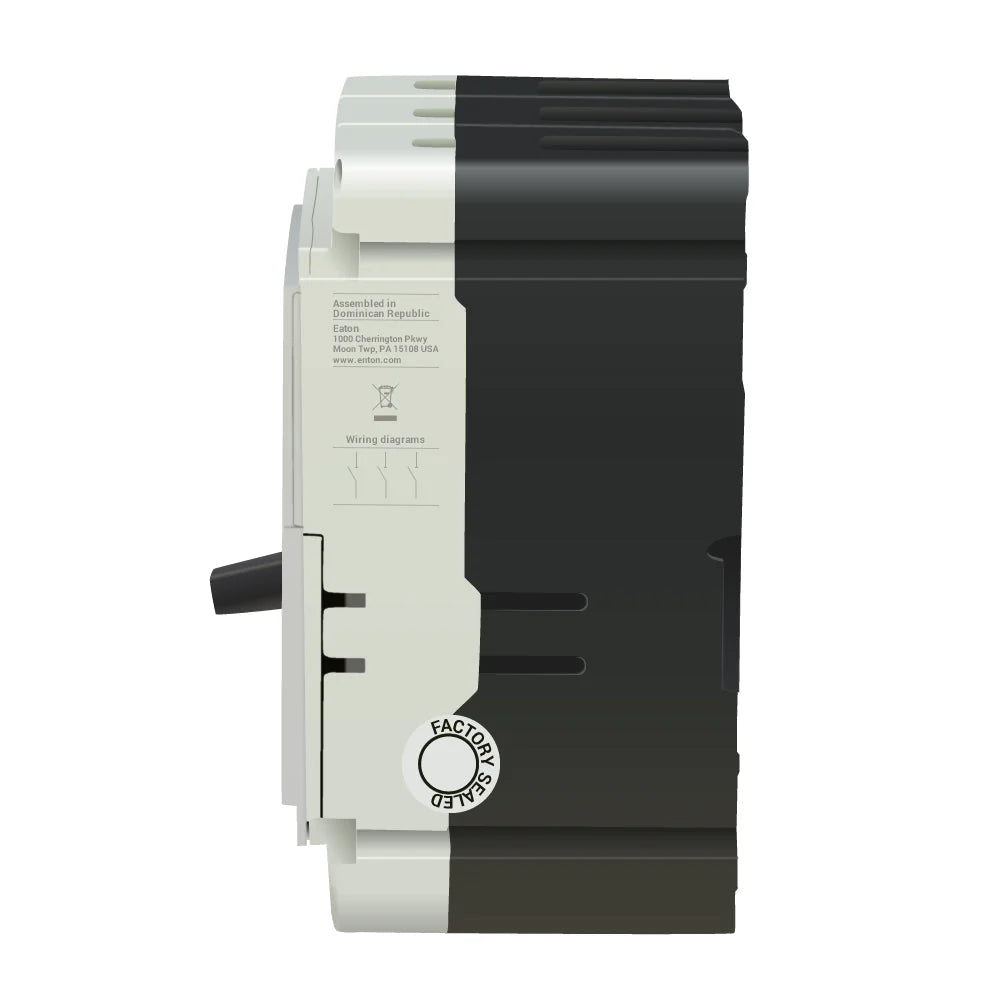

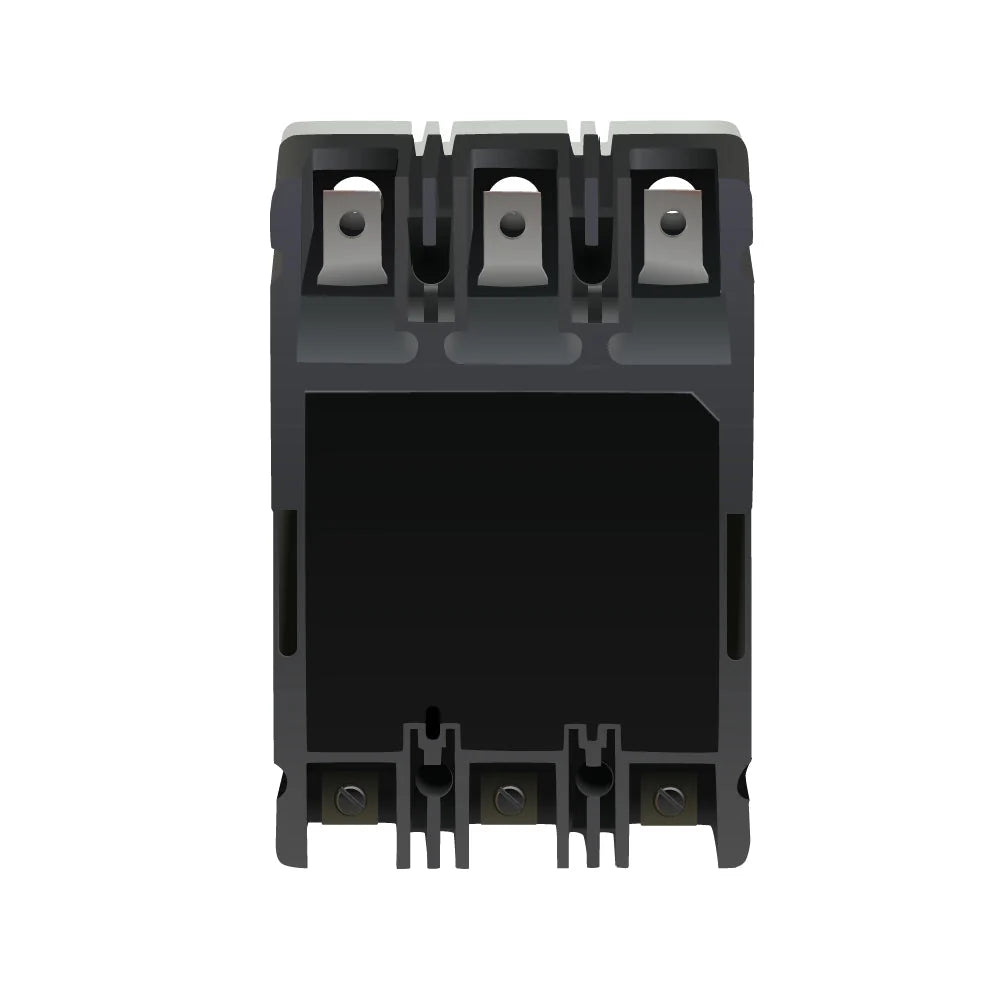

PDG23G0225TFFJ - Eaton - Molded Case Circuit Breakers Feed-Thru - 250 Amp - 3 Pole - 600 Volt
New
$919.99
Sale price
$919.99
Regular price
Skip to product information
PDG23G0225TFFJ - Eaton - Molded Case Circuit Breakers Feed-Thru - 250 Amp - 3 Pole - 600 Volt
$919.99
Sale price
$919.99
Regular price
Product images are representative only. Actual product may vary.
Description
Part of the advanced Power Defense Frame 2 series, this 225A molded case circuit breaker delivers 35kAIC interrupting capacity at 480VAC. It installs into Eaton switchboards and enclosures, coming standard with line and load lugs for immediate wiring. Designed to modernize commercial electrical systems, it seamlessly replaces older Series C FD3225 and Series G EGS3225FFG models while maintaining the same physical footprint. Global ratings ensure compliance across diverse industrial applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0225TFFJ |
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included (PDG2X3TA225K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant, Global Rated |
