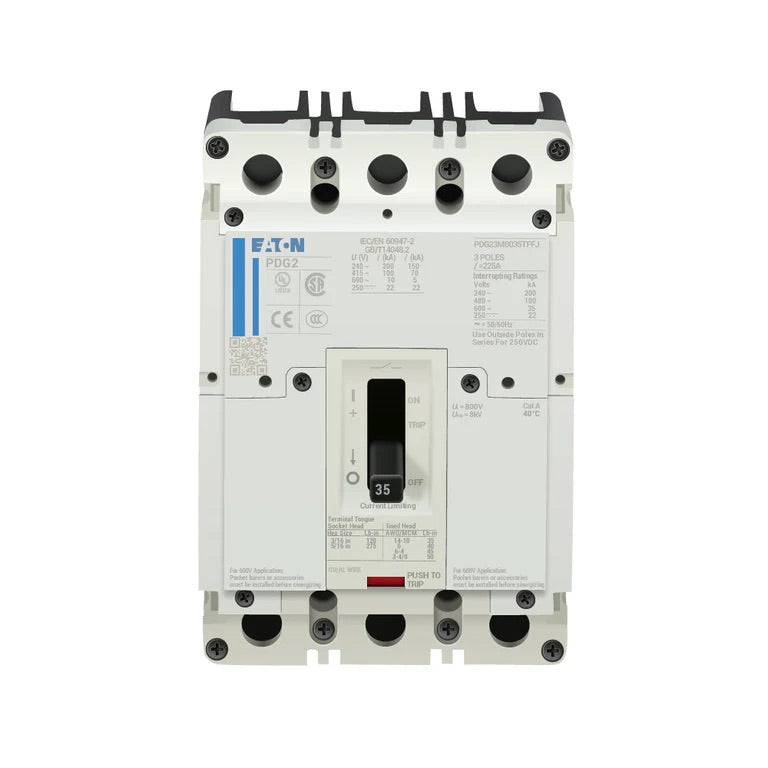

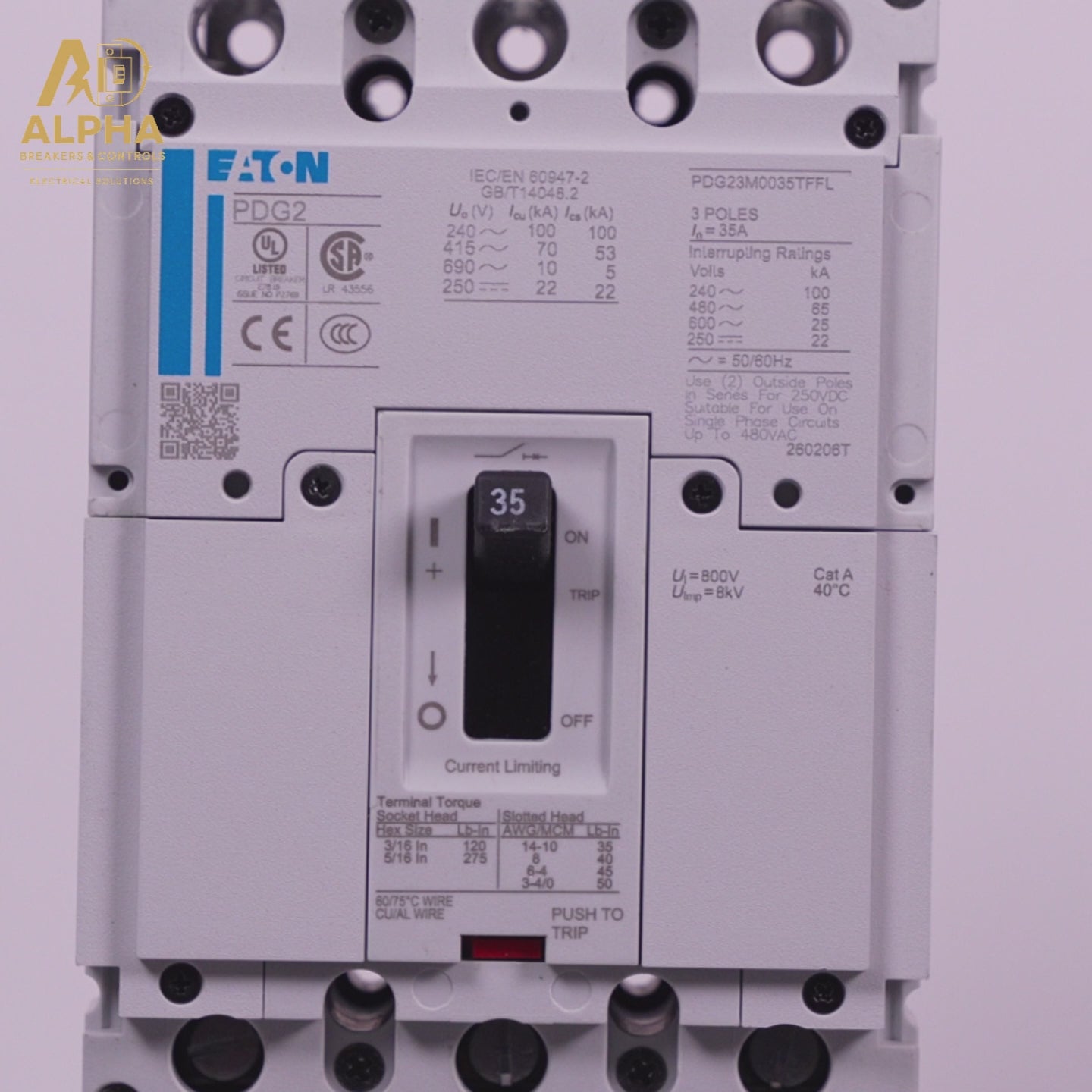

Eaton - PDG23M0035TFFJ – 35A 3-Pole 600V 65kA Power Defense Feed-Thru Circuit Breaker
Eaton - PDG23M0035TFFJ – 35A 3-Pole 600V 65kA Power Defense Feed-Thru Circuit Breaker
Product images are representative only. Actual product may vary.
The Eaton PDG23M0035TFFJ is a 3-pole, 35-amp thermal magnetic molded case circuit breaker rated for 600VAC with an interrupting capacity of 65kA, part of Eaton's Power Defense (PDG) Frame 3 platform. It is a direct modern replacement for the Eaton HFD3035, offering superior 65kA IC in a Feed-Thru (TFFJ) mounting configuration for industrial panelboards and switchboards.
Key Specifications
| Part Number | PDG23M0035TFFJ |
| Brand | Eaton |
| Amperage | 35A |
| Poles | 3-Pole |
| Voltage Rating | 600VAC |
| Interrupting Capacity | 65kA @ 600V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru (TFFJ) |
| Series / Frame | PDG Power Defense Frame 3 |
| Replaces | Eaton HFD3035 |
| Standard | UL 489, CSA C22.2, IEC 60947-2 |
Features & Benefits
- 65kA @ 600V interrupting capacity — premium protection for 35A branch circuits in high-fault environments
- Replaces Eaton HFD3035 — modern successor with backward-compatible Power Defense frame
- TFFJ Feed-Thru mounting — compatible with Eaton Power Defense panelboards
- UL 489, CSA C22.2, and IEC 60947-2 certified
Typical Applications
- Industrial 35A branch circuit protection at 600V
- Manufacturing, process, and commercial electrical distribution panels
- Direct replacement for Eaton HFD3035 in existing installations
Frequently Asked Questions
Q: Does the PDG23M0035TFFJ directly replace the HFD3035?
A: The Power Defense Frame 3 is engineered as the successor to HFD-frame breakers. Verify lug and dimensional compatibility for your specific panelboard using Eaton's cross-reference.
Q: Is the PDG23M0035TFFJ UL listed?
A: Yes — UL 489, CSA C22.2, and IEC 60947-2 compliant.
Alpha Brokers & Controls supplies verified new Eaton Power Defense circuit breakers. Ships fast across the US.
