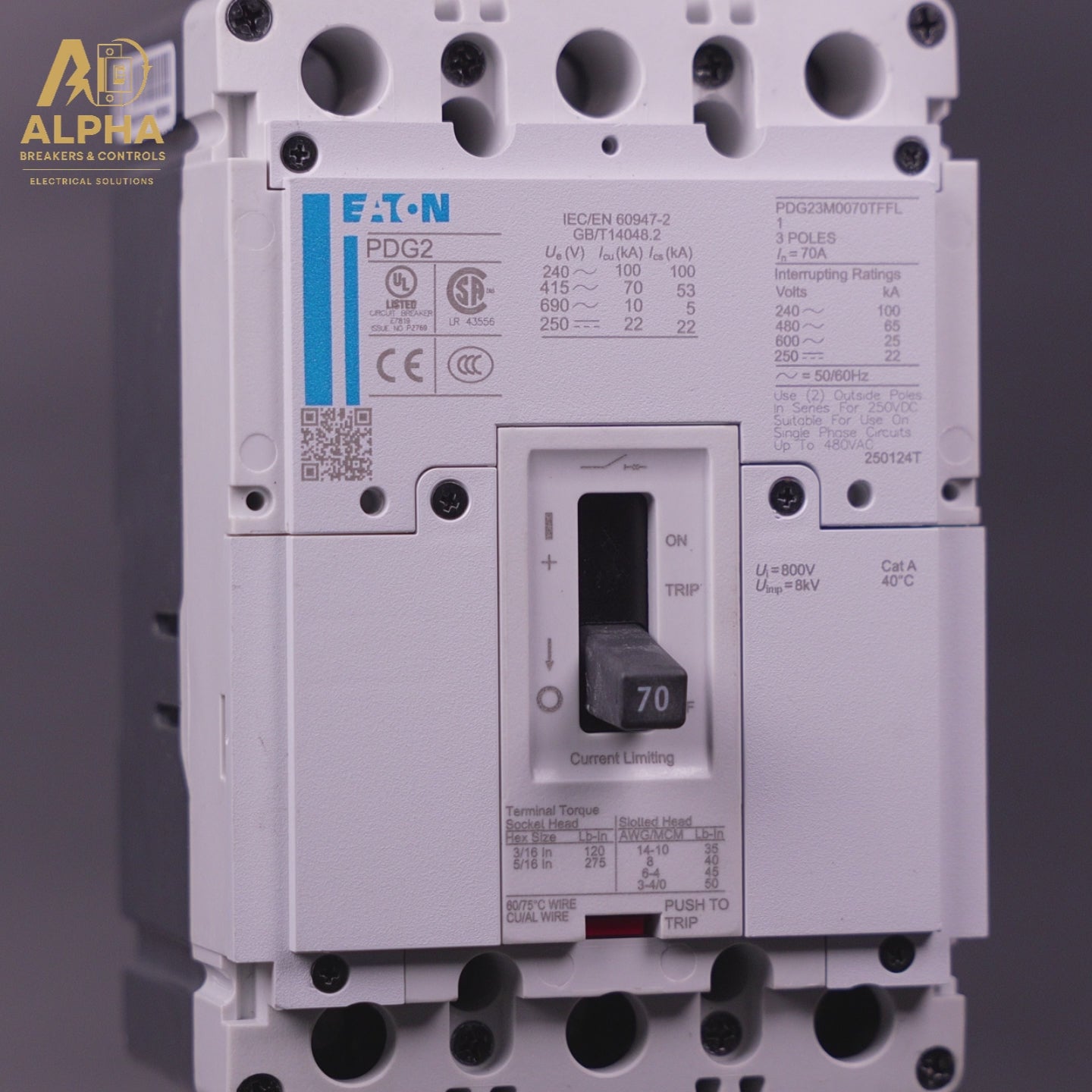

The Eaton PDG23M0070TFFL is a 3-pole, 70-amp thermal magnetic molded case circuit breaker (MCCB) rated for 600VAC. Part of Eaton's Power Defense PDG2 series, this breaker delivers dependable overcurrent and short-circuit protection for commercial and industrial three-phase branch and feeder circuits, with standard load-side terminals for straightforward panel mounting.
Specifications
| Attribute | Value |
|---|---|
| Part Number | PDG23M0070TFFL |
| Manufacturer | Eaton (Cutler-Hammer) |
| Series | Power Defense PDG2 |
| Amperage Rating | 70A |
| Voltage Rating | 600VAC |
| Number of Poles | 3 |
| Trip Type | Thermal Magnetic, Fixed (Non-Interchangeable) |
| Terminal Type | Standard Terminals, Load Only |
| Interrupting Rating | 65kAIC @ 480VAC / 35kAIC @ 600VAC / 100kAIC @ 240VAC |
| Standard | UL 489 Listed |
| Frame | 2 |
Key Features
- Thermal magnetic trip for time-delay overload and instantaneous fault protection
- 70-amp rating for commercial and industrial branch and feeder circuits at 600V
- 3-pole design for three-phase power system protection
- Fixed, non-interchangeable trip unit for consistent, tamper-resistant protection settings
- Robust Eaton PDG2 frame construction for industrial environments
- UL 489 Listed, NEC compliant
Common Applications
- 70A three-phase branch circuit protection in 600V industrial panels
- Motor branch circuit protection in commercial and industrial applications
- HVAC and process equipment feeder circuits at 600V
- Manufacturing plant branch circuit distribution
- Panelboard and switchgear breaker replacements in 600VAC systems
Frequently Asked Questions
What is the Eaton PDG23M0070TFFL?
The Eaton PDG23M0070TFFL is a 70-amp, 3-pole, 600V thermal magnetic molded case circuit breaker used to protect three-phase branch and feeder circuits in industrial and commercial 600V electrical distribution systems.
What is the interrupting capacity of the PDG23M0070TFFL?
The PDG23M0070TFFL carries an interrupting rating of 65kAIC at 480VAC, with additional ratings of 35kAIC at 600VAC and 100kAIC at 240VAC, making it suitable for most commercial and industrial 600V power systems.
Is the trip unit on the PDG23M0070TFFL adjustable?
No. The PDG23M0070TFFL uses a fixed, non-interchangeable thermal magnetic trip unit set at the factory, providing consistent overcurrent and short-circuit protection without field adjustment.
