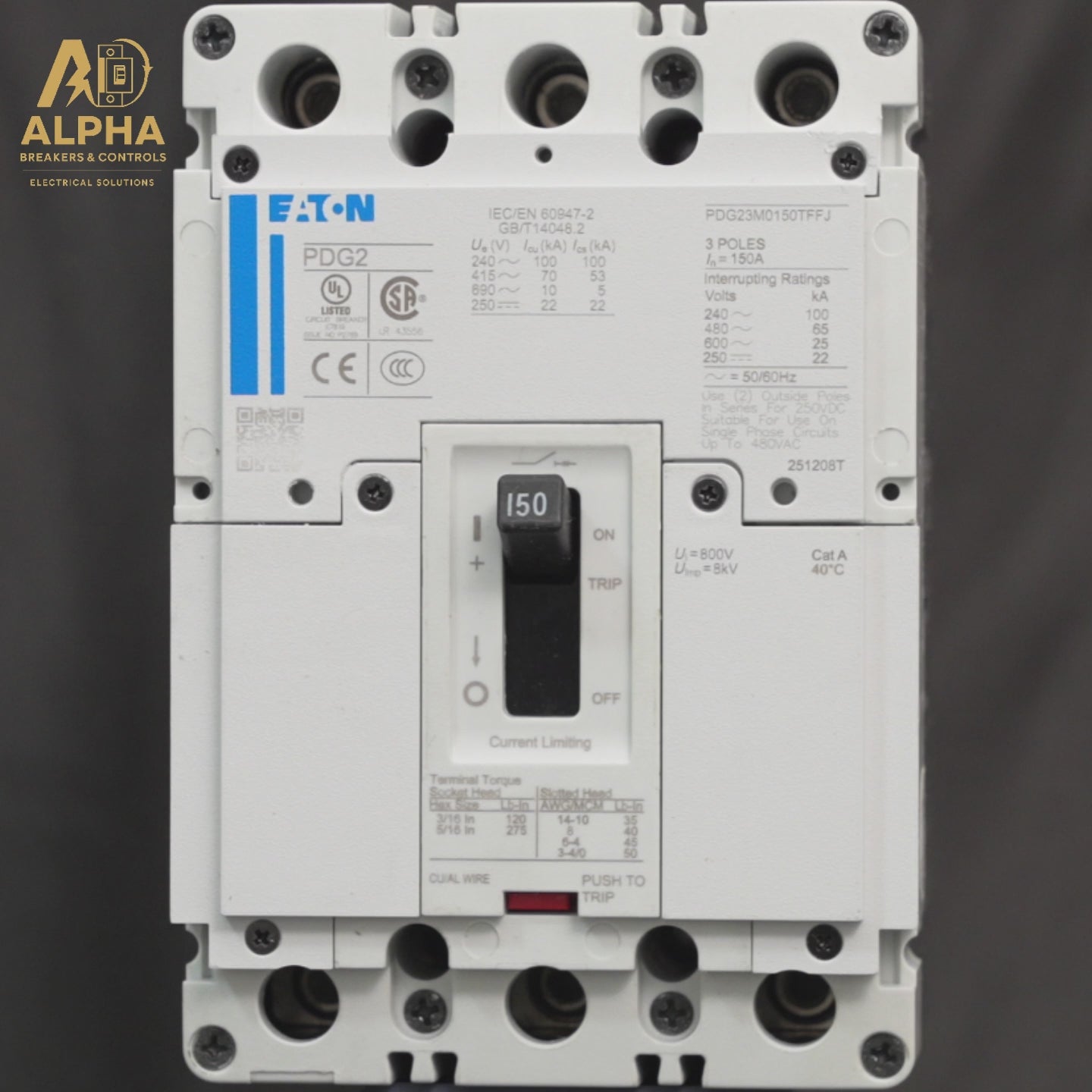

Eaton - PDG23M0150TFFJ – 150A 3-Pole 600V 65kA Power Defense Feed-Thru Circuit Breaker
Eaton - PDG23M0150TFFJ – 150A 3-Pole 600V 65kA Power Defense Feed-Thru Circuit Breaker
Product images are representative only. Actual product may vary.
The Eaton PDG23M0150TFFJ is a 3-pole, 150-amp thermal magnetic molded case circuit breaker rated for 600VAC with an interrupting capacity of 65kA, part of Eaton's Power Defense series (PDG Frame 3). The Feed-Thru (TFFJ) mounting configuration makes it ideal for industrial panelboards, switchboards, and commercial distribution equipment requiring 65kA fault protection at 150A.
Key Specifications
| Part Number | PDG23M0150TFFJ |
| Brand | Eaton |
| Amperage | 150A |
| Poles | 3-Pole |
| Voltage Rating | 600VAC |
| Interrupting Capacity | 65kA @ 600V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru (TFFJ) |
| Series / Frame | PDG Power Defense Frame 3 |
| Standard | UL 489, CSA C22.2, IEC 60947-2 |
Features & Benefits
- 65kA @ 600V interrupting capacity — top-tier IC for 150A industrial circuit protection
- PDG Frame 3 (PDG23M) — covers 15A–250A; replaces multiple legacy Eaton frame sizes
- TFFJ Feed-Thru J-lug mounting — drop-in compatible with Eaton Power Defense equipment
- UL 489, CSA C22.2, and IEC 60947-2 certified
Typical Applications
- Industrial 150A feeder and branch circuit protection at 600V
- Manufacturing, process, and commercial electrical switchboards
- Replacement for legacy Eaton HFD3150 and similar 150A breakers
Frequently Asked Questions
Q: Is the PDG23M0150TFFJ a replacement for the Eaton HFD3150?
A: The Power Defense Frame 3 is engineered to replace HFD-frame breakers in many applications. Verify lug and dimensional compatibility using Eaton's cross-reference tool.
Q: Is the PDG23M0150TFFJ UL listed?
A: Yes — UL 489, CSA C22.2, and IEC 60947-2 compliant.
Alpha Brokers & Controls supplies verified new Eaton Power Defense circuit breakers. Ships fast across the US.
