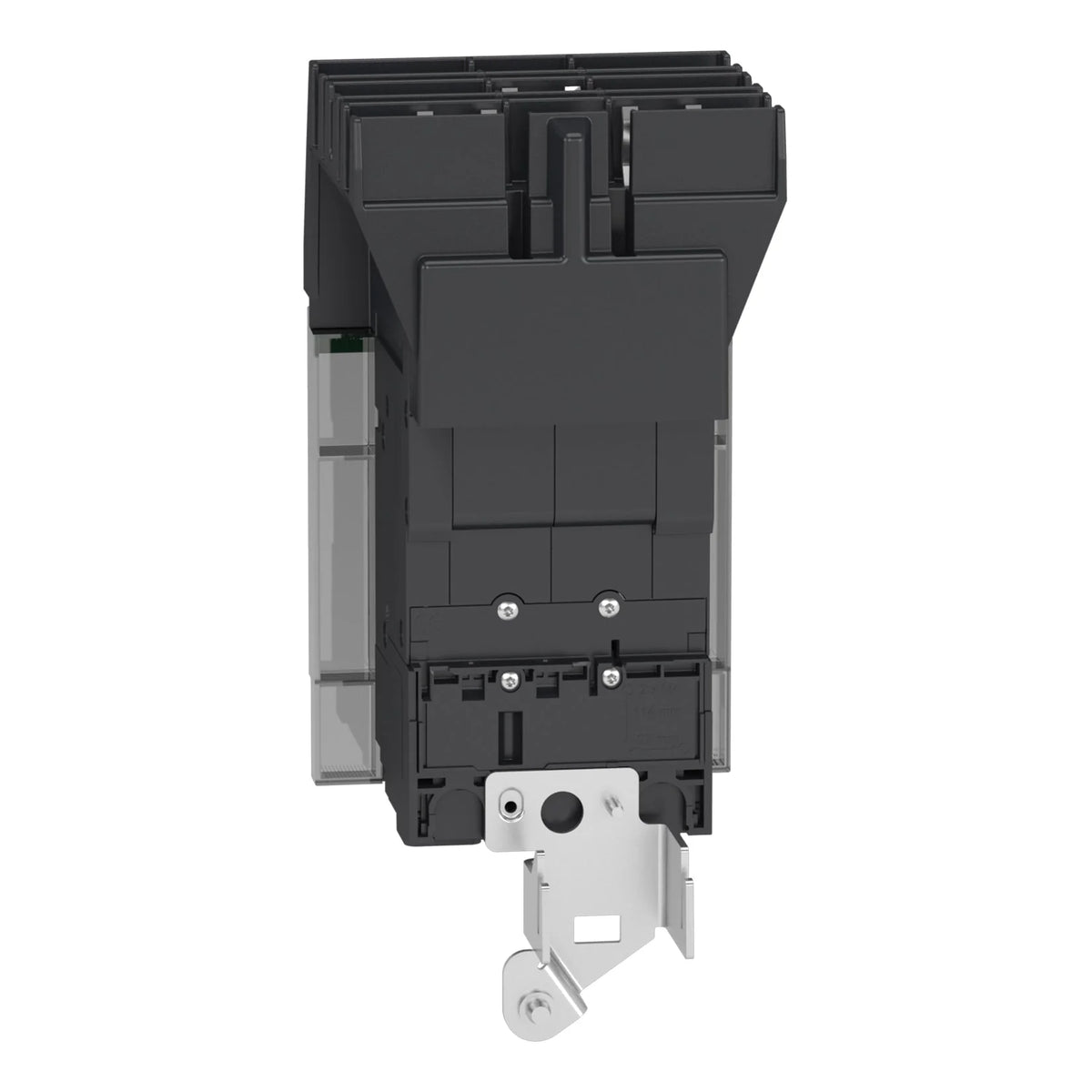

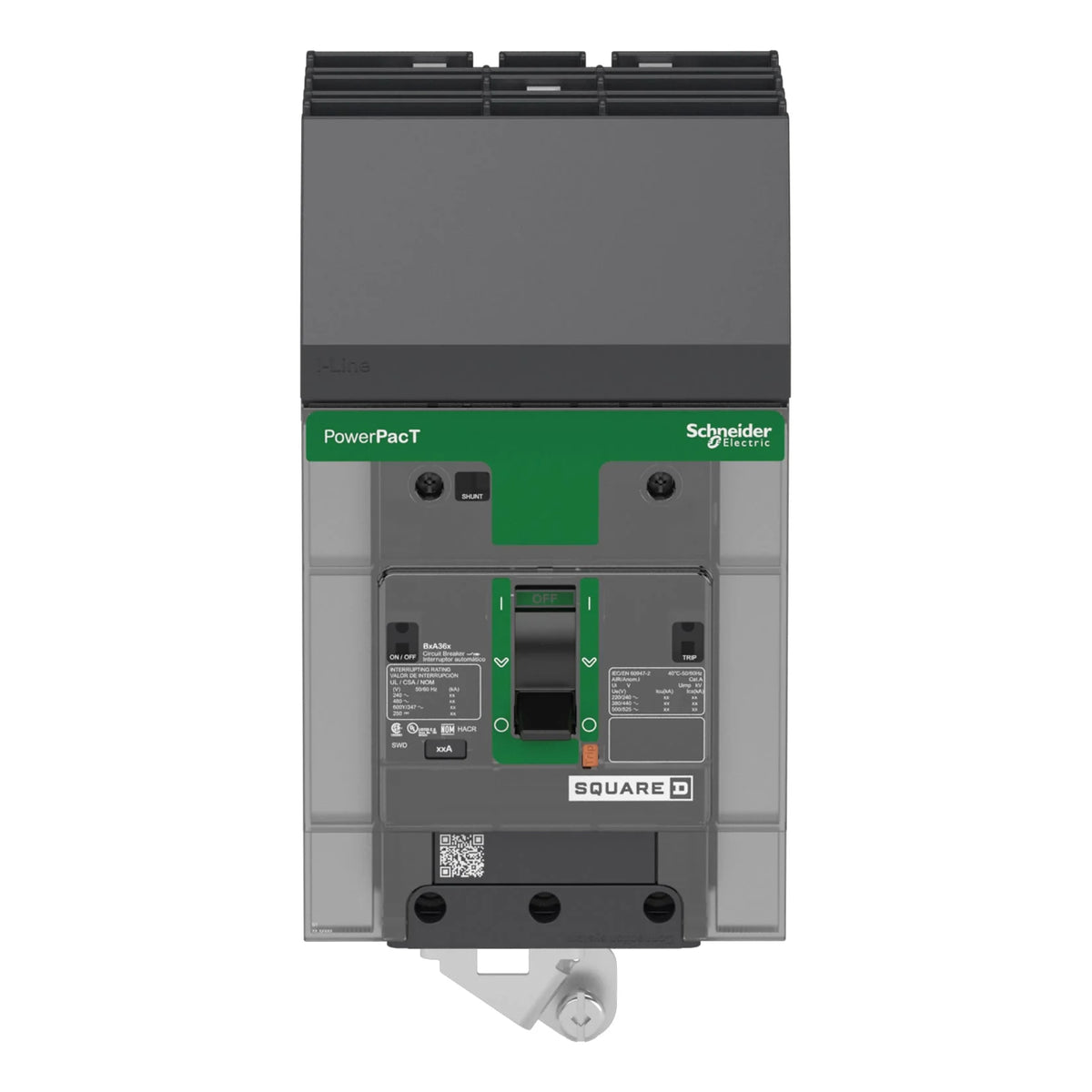

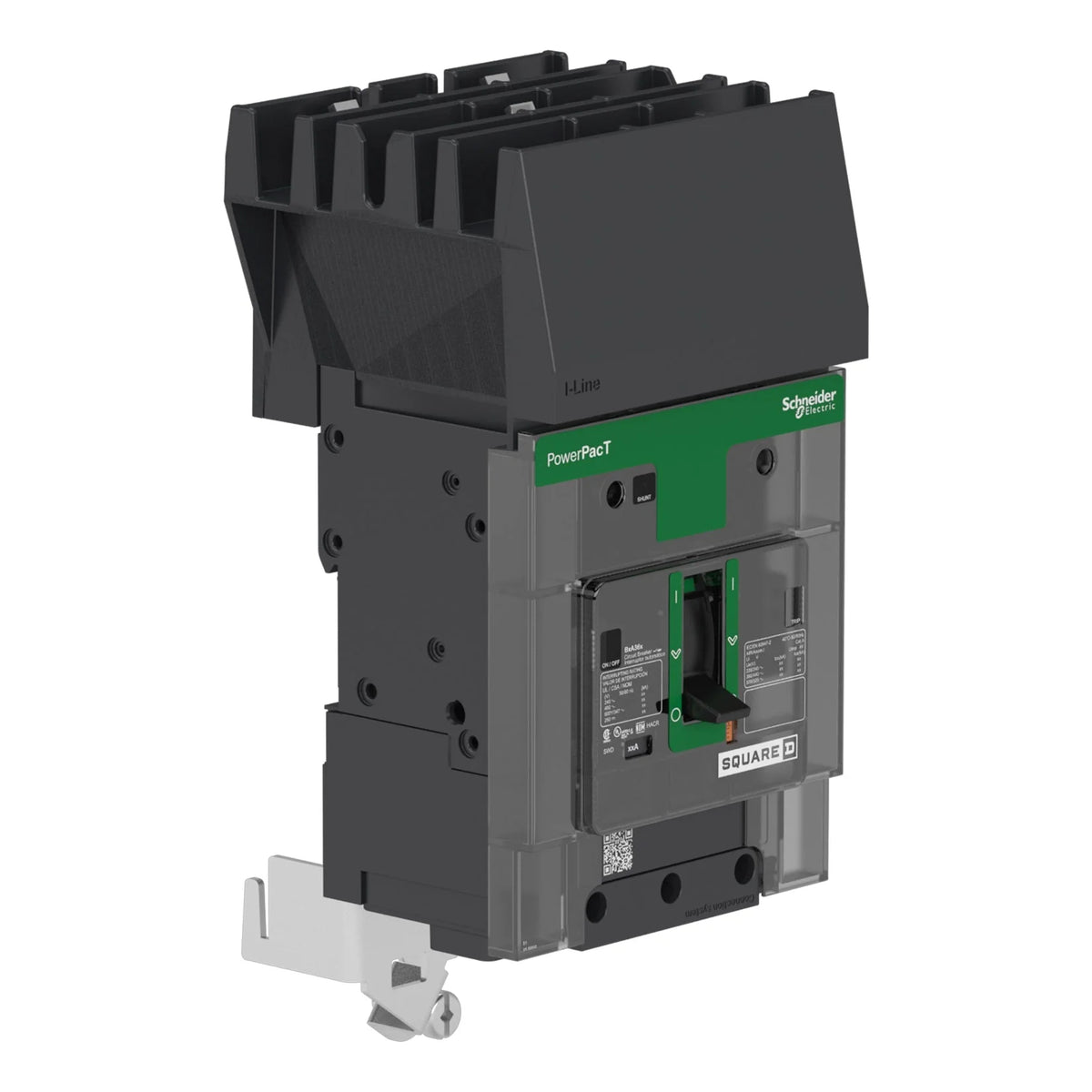

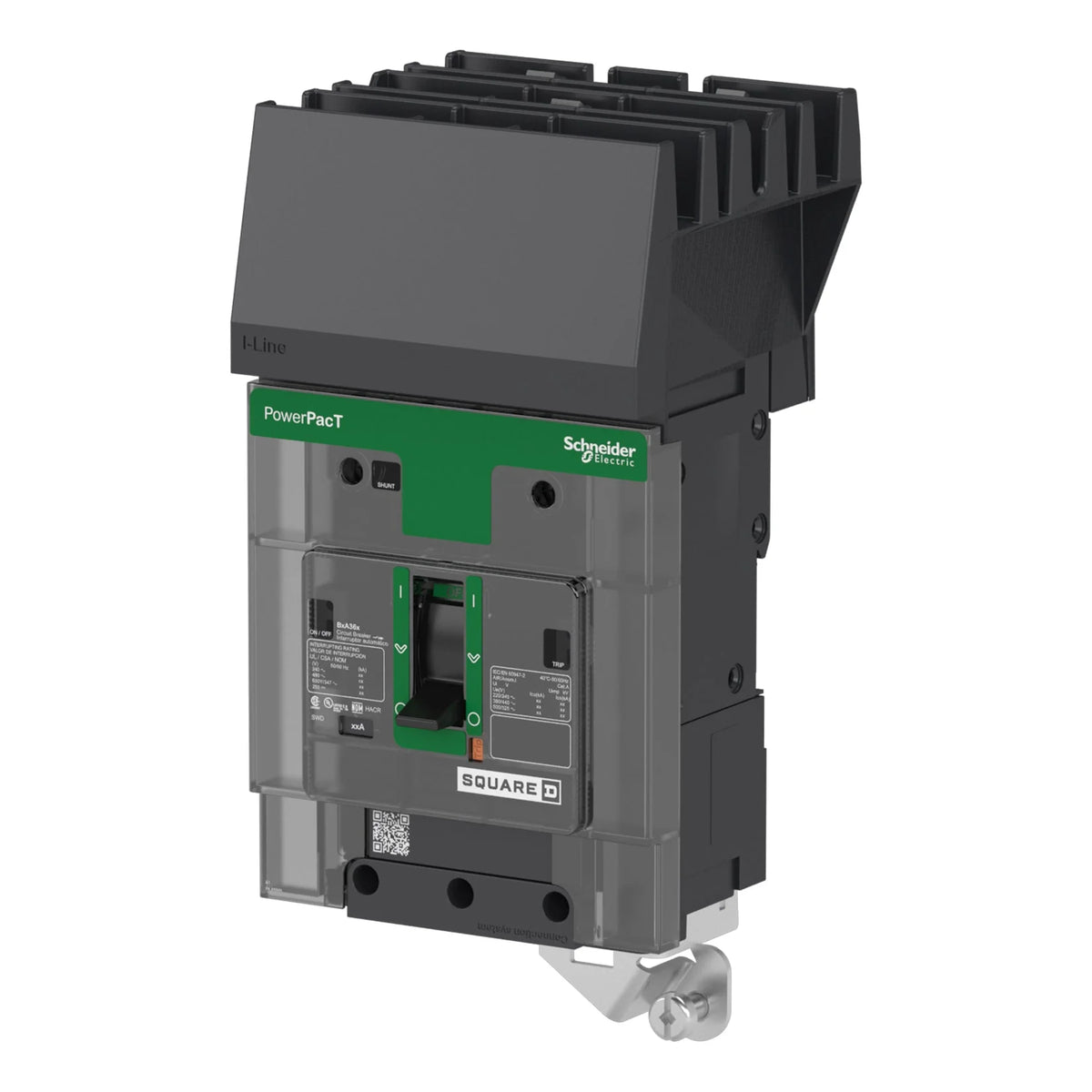

SCHNEIDER ELECTRIC BJA36015 3 Pole Din Rail Mount Circuit Breakers

THERMAL MAGNETIC TYPE 3.19 INCH WIDTH X 3.5 INCH DEPTH X 5.39 INCH HEIGHT SIZE 347 VOLT MAX. AC VOLTAGE RATING 250 VOLT MAX. DC VOLTAGE RATING UL CSA CE APPROVAL 600 STAR/347 VOLT AC 50/60 HERTZ 250 VOLT DC VOLTAGE RATING 25 KILOAMP AT 600 STAR/347 VOLT 50 KILOAMP AT 250 VOLT DC INTERRUPTING RATING 15 AMP CURRENT RATING 3 POLE(S) I-LINE CONNECTION LINE LUG LOAD TERMINAL TYPE B FRAME TYPE POWERPACT[TM] BRAND ROHS/REACH COMPLIANT TRIP SETTING 400 AMP (HOLD) 600 AMP (TRIP) MOUNTING TYPE I-LINE CONTROL TYPE TOGGLE TERMINAL WIRE SIZE 14 TO 2/0 AWG (COPPER/ALUMINUM) CONTINUOUS CURRENT RATING 80 PERCENT PHASE CONNECTION TYPE ABC OPERATION AMBIENT AIR TEMPERATURE RATING -13 TO 158 DEG F APPLICATION DISTRIBUTION APPLICABLE STANDARD EAC NOM IEC CCC NEMA AB1 EN/IEC 60947-2/60947-5-1 NMX J-266 GB 14048.2 BJ MODEL
