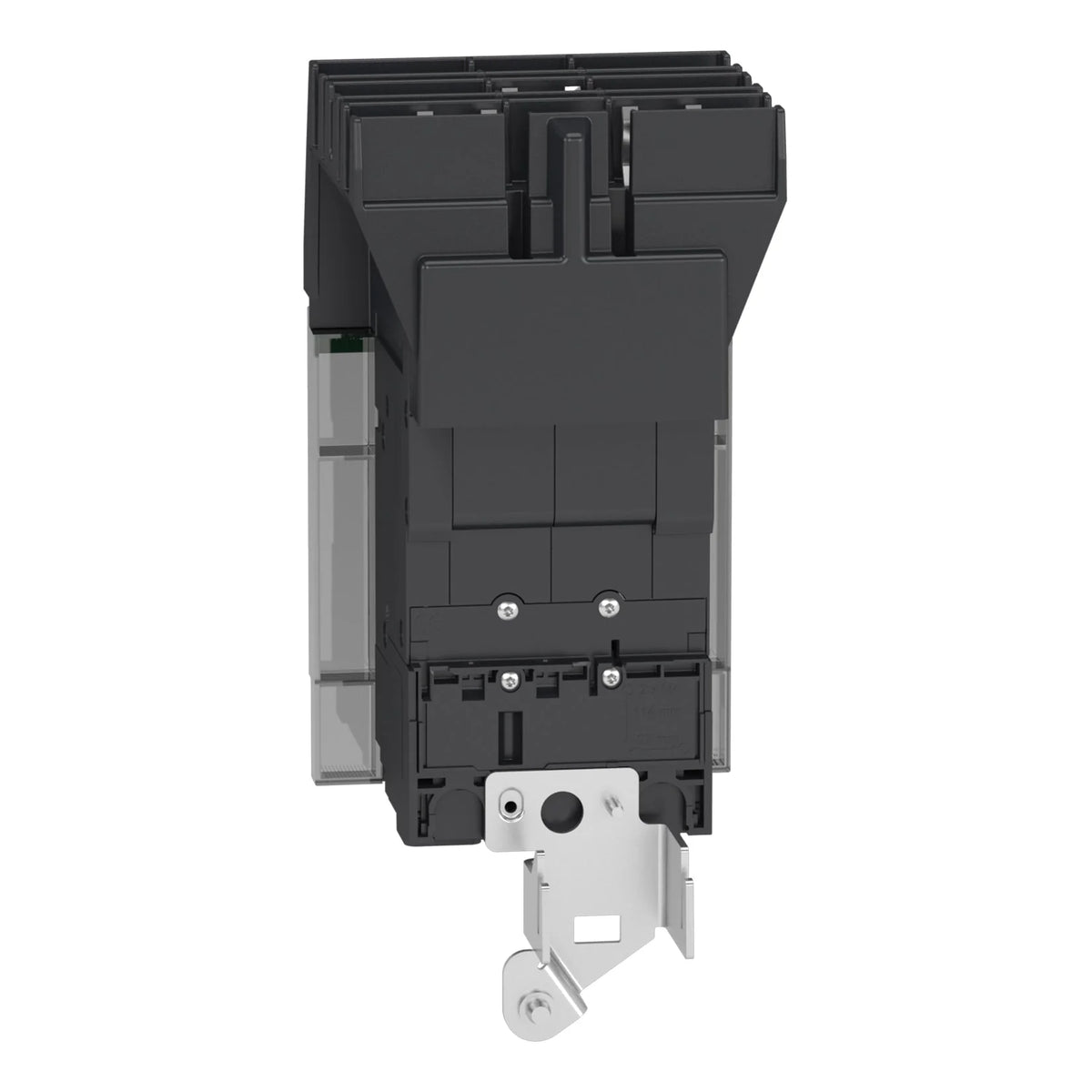

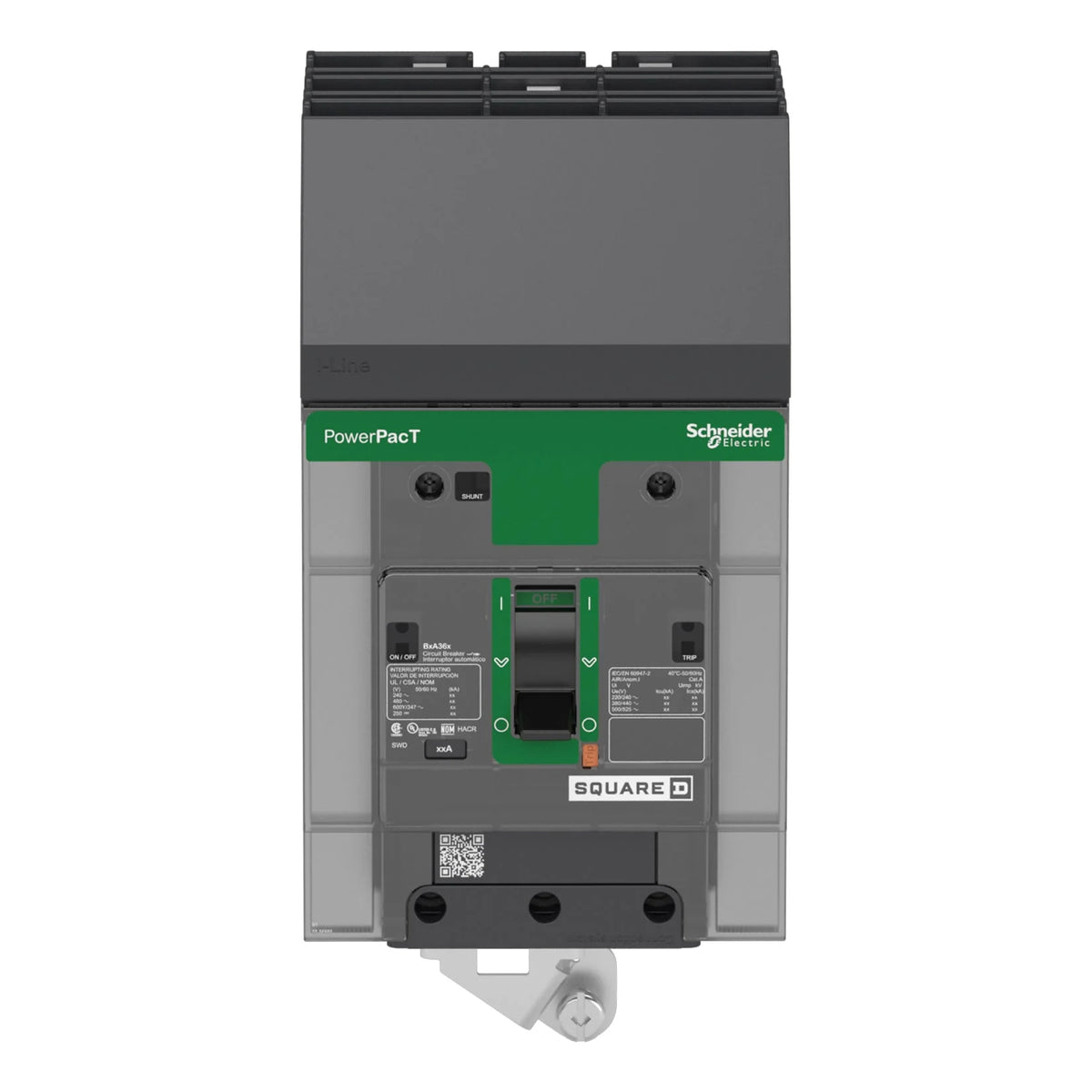

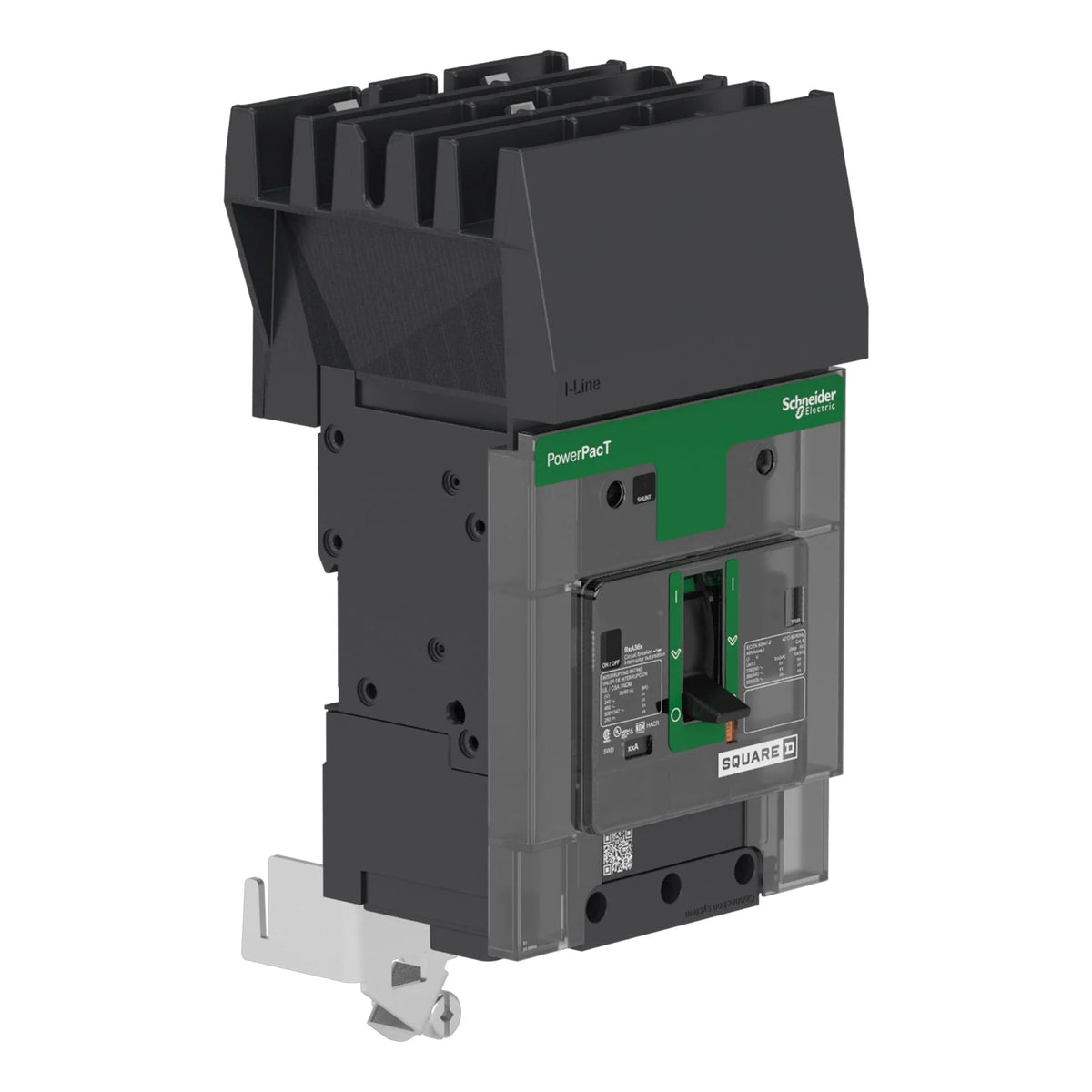

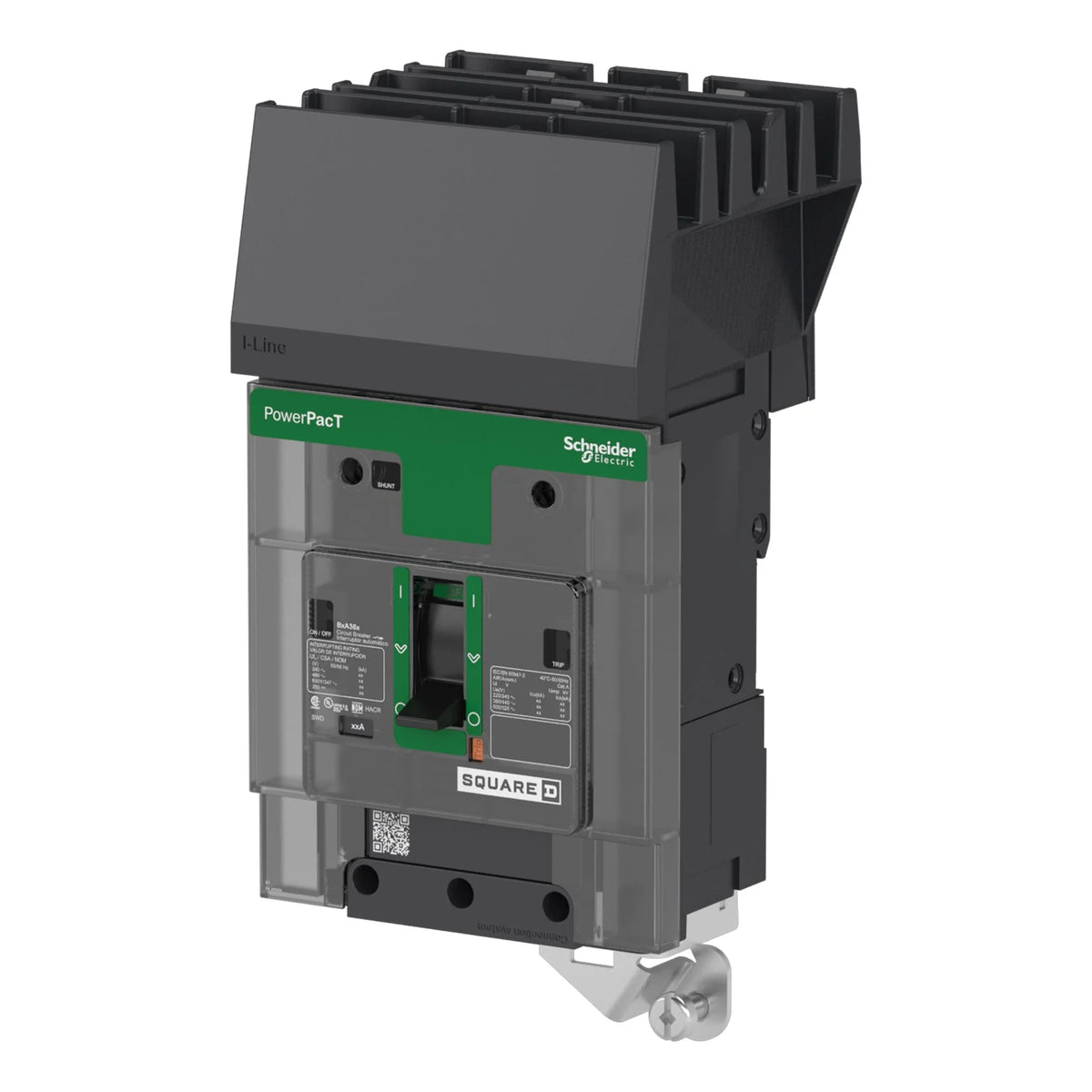

BGA36125 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 125 Amp - 3 Pole - 600 Volt
New
$599.99
Sale price
$599.99
Regular price
Skip to product information
BGA36125 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 125 Amp - 3 Pole - 600 Volt
$599.99
Sale price
$599.99
Regular price
Product images are representative only. Actual product may vary.
Description
Providing robust thermal-magnetic trip functions, this 125-amp PowerPacT B-Frame breaker is built for demanding industrial environments. The I-Line mounting configuration ensures seamless integration into compatible Square D panelboards, making it an ideal upgrade path for older FA36125 installations. With a 35kAIC rating at 480VAC and factory-installed lugs handling 14 to 2/0 AWG wire, this three-pole MCCB delivers consistent phase ABC protection and clear visual trip status.Specifications
| Brand | Square D |
|---|---|
| Part Number | BGA36125 |
| Series | BGA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Frame Type | B Frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | I-Line Mounting Hardware |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
