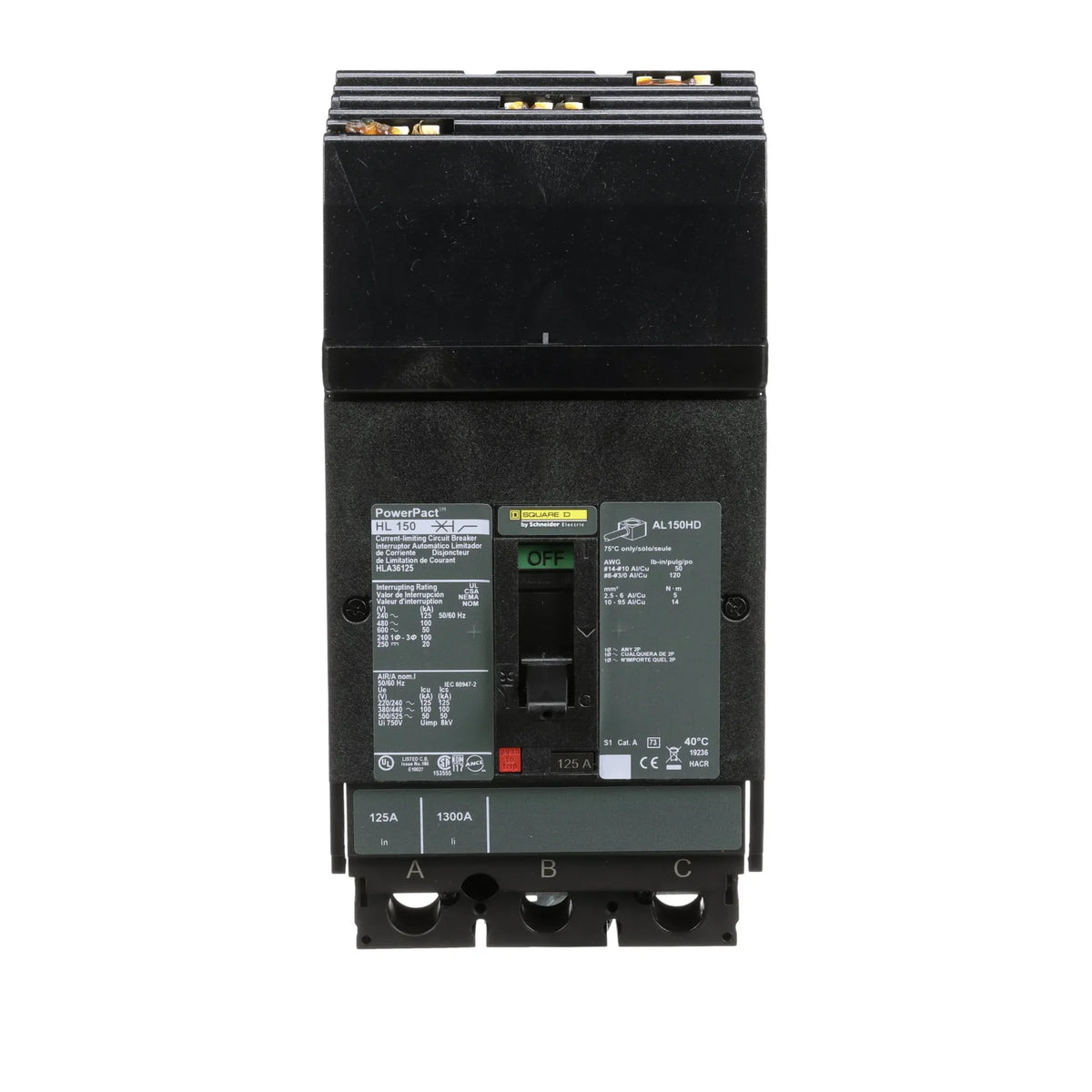

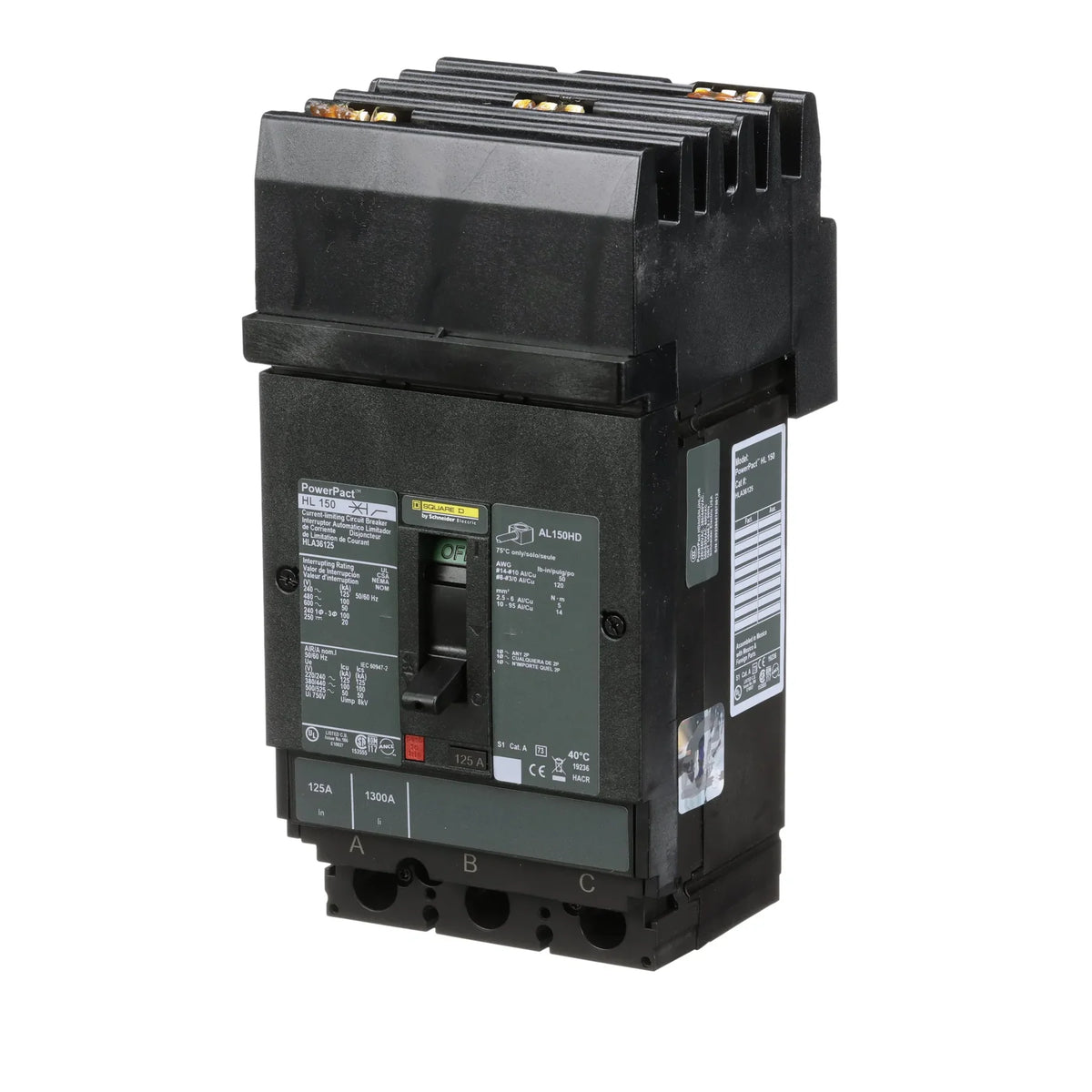

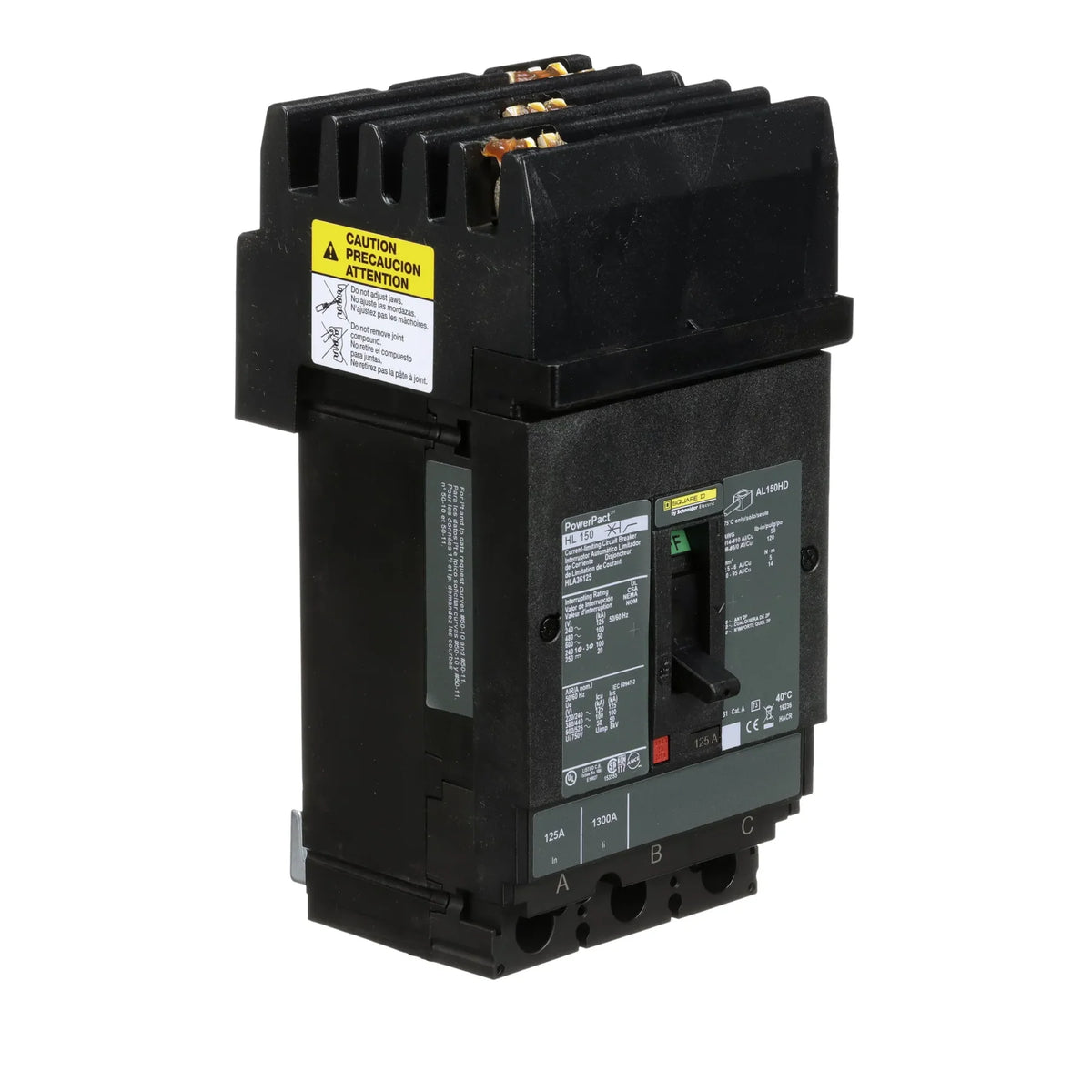

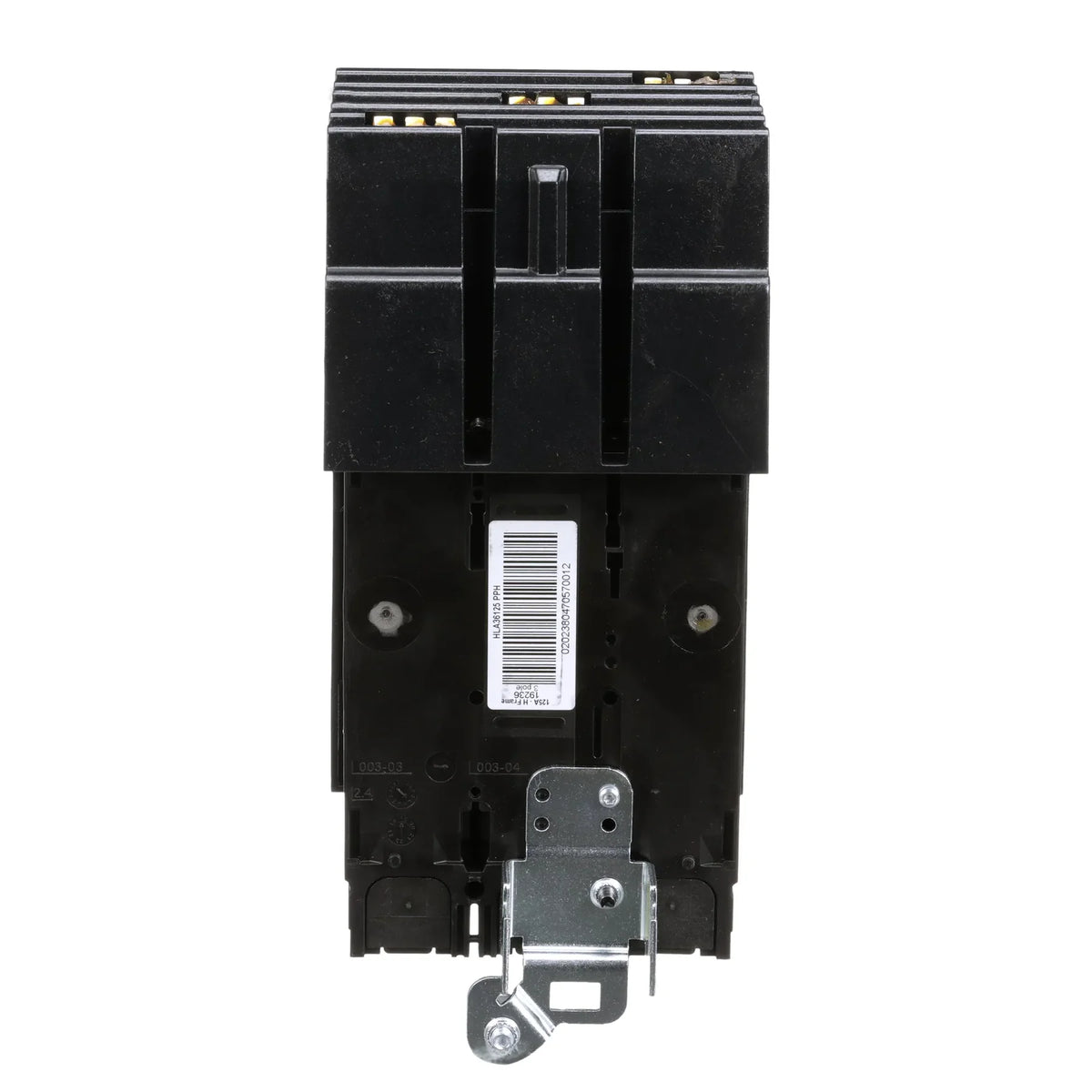

HLA36125 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 125 Amp - 3 Pole - 600 Volt
New
$1,499.99
Sale price
$1,499.99
Regular price
Skip to product information
HLA36125 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 125 Amp - 3 Pole - 600 Volt
$1,499.99
Sale price
$1,499.99
Regular price
Product images are representative only. Actual product may vary.
Description
Part of the PowerPacT H-Frame series, this 125A thermal-magnetic breaker provides robust long-time and instantaneous (LI) protection for demanding industrial applications. It installs into Square D I-Line panelboards and switchboards, utilizing a plug-on phase connection for rapid deployment. Featuring a 100kAIC interrupting rating at 480VAC, the current-limiting design ensures superior system reliability while maintaining compliance with UL 489 and IEC standards for commercial switchgear.Specifications
| Brand | Square D |
| Series | HLA |
| Part Number | HLA36125 |
| Amperage | 125A |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Non-Interchangeable Trip, RoHS Compliant, Mercury Free, PVC Free |
