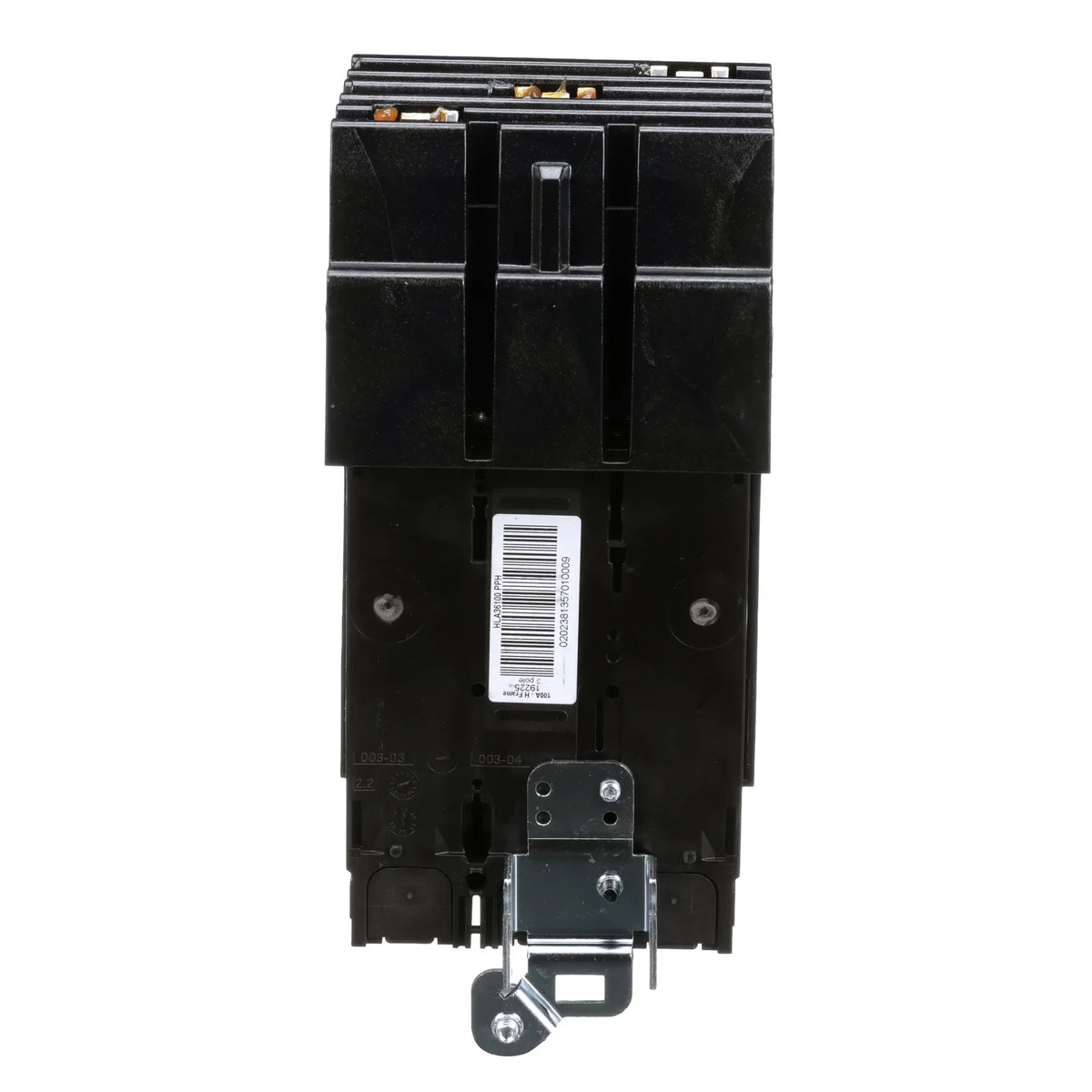

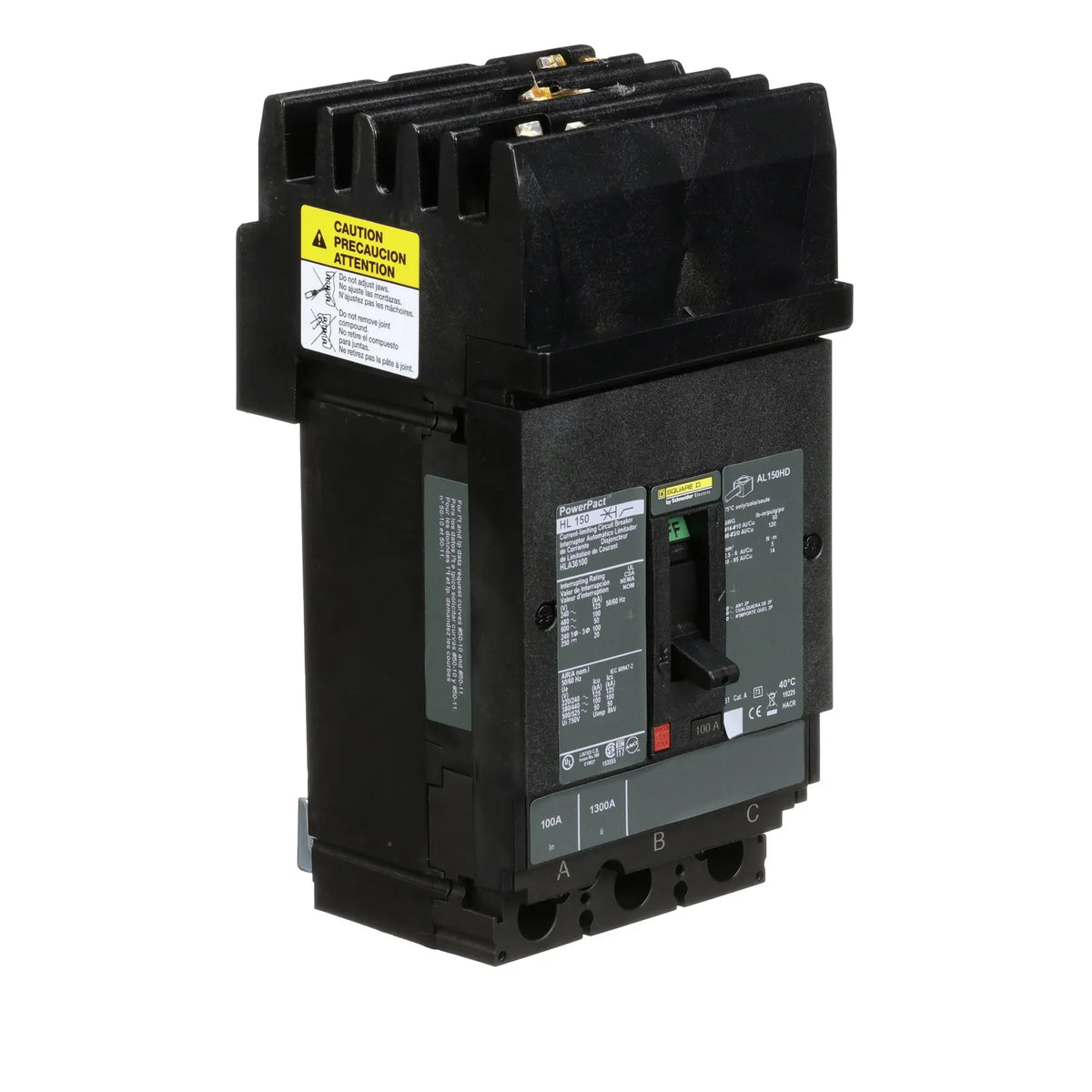

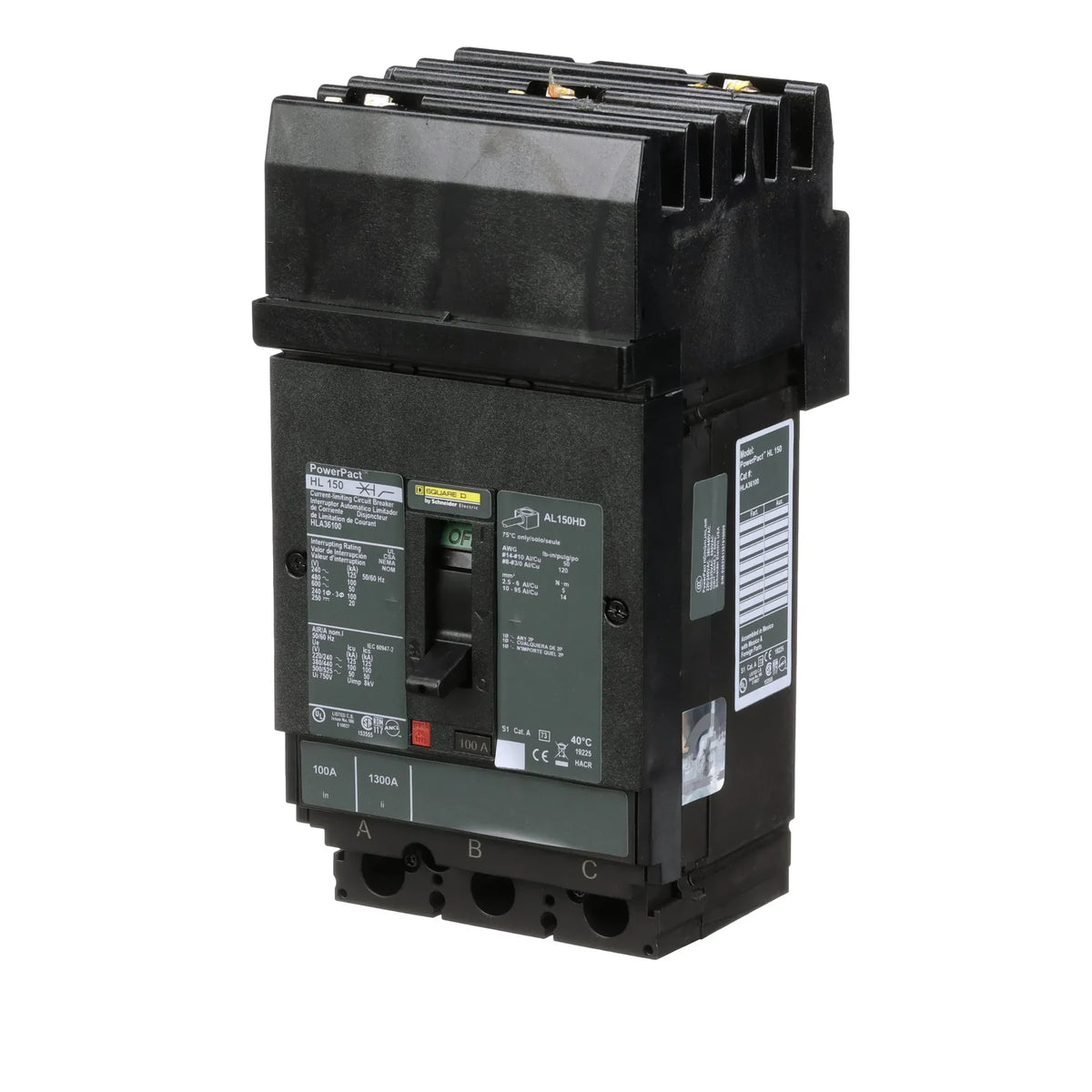

HLA36150 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt
New
$2,184.99
Sale price
$2,184.99
Regular price
Skip to product information
HLA36150 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt
$2,184.99
Sale price
$2,184.99
Regular price
Product images are representative only. Actual product may vary.
Description
Built for commercial and industrial power distribution, this 150A PowerPacT H-Frame circuit breaker provides reliable thermal-magnetic protection. The unit installs into Square D I-Line panelboards and switchboards, utilizing a plug-on phase connection for efficient setup. Rated at 100 kAIC at 480VAC, it delivers exceptional current-limiting performance. The breaker features a dual-break rotary contact structure that reduces peak current during short circuit faults.Specifications
| Brand | Schneider Electric |
| Series | HLA |
| Part Number | HLA36150 |
| Amperage | 150A |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Terminal Shields |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Dual-Break Rotary Contact Structure |
