TED136050 - GE - E150 Bolt-On Molded Case Circuit Breaker - 50 Amp - 3 Pole - 600 Volt
TED136050 - GE - E150 Bolt-On Molded Case Circuit Breaker - 50 Amp - 3 Pole - 600 Volt
Product images are representative only. Actual product may vary.

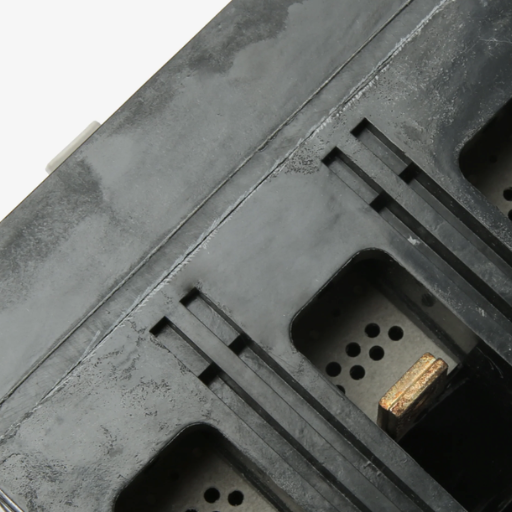

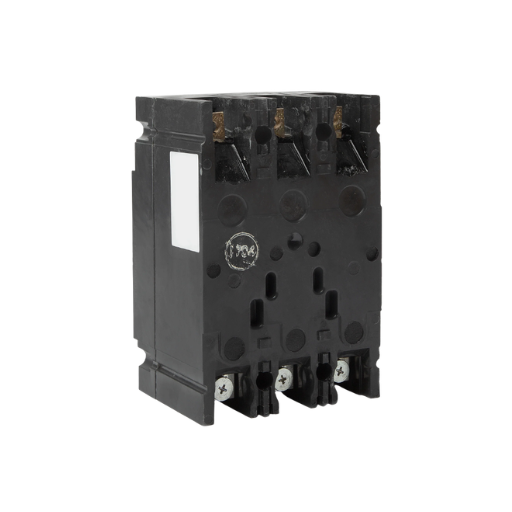

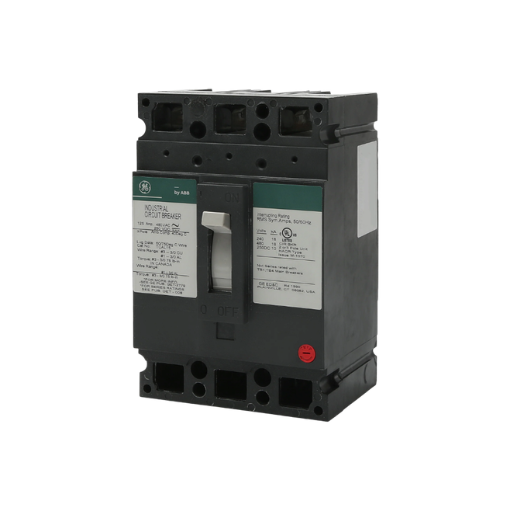

The GE TED136050 is a 50A, 3-pole E150-frame molded case circuit breaker with bolt-on mounting, rated 600VAC and built for GE A-Series and Spectra panelboards, switchboards, motor control centers, and E150 enclosures.
Fifty amps at 600 volts is one of the most-specified sizes in commercial and light industrial distribution — rooftop units, pump panels, and small transformer primaries all land in this range. The TED136050 delivers fixed thermal-magnetic Long-Time and Instantaneous (LI) protection with an 18kA interrupting rating at 480VAC and 14kA at 600VAC. The bolt-on connection torques directly to the bus for a vibration-resistant joint, which is why it is preferred in MCC and switchboard applications over plug-on styles. HACR and HID rated, reverse-feed capable, and supplied with TCAL12 lugs.
Specifications
| Brand | GE / ABB (General Electric) |
|---|---|
| Series | E150 Line, Type TED |
| Part Number | TED136050 |
| Amperage | 50A (150A frame) |
| Voltage | 600VAC, 480VAC, 240VAC, 500VDC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC (UL 489) |
| Mounting Style | Bolt-On |
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers, E150 Enclosures |
| Trip Technology | Thermal Magnetic (LI — Long-Time, Instantaneous) |
| Trip Adjustability | Fixed Thermal / Fixed Magnetic |
| Wire Range | #14–2 AWG (Cu), #12–2 AWG (Al) |
| Accessories Included | TCAL12 Lugs |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, HACR |
| Approvals | UL, CSA, CE |
| Construction Features | HACR Rated, HID Rated, Reverse Feed Capable, Non-Interchangeable Trip |
| Operating Temperature | 40°C |
| Shipping Dimensions | 12 x 9 x 9 in |
| Shipping Weight | 8 lb |
| Condition | New |
Frequently Asked Questions
What is the interrupting rating of the TED136050?
18kA at 240VAC and 480VAC, 14kA at 600VAC, and 10kA at 250VDC and 500VDC.
What is the difference between the TED136050 and the THED136050?
Interrupting capacity. The THED is the high-interrupting version of the same E150 frame, rated 25kA at 480VAC and 65kA at 240VAC. If your fault-current study shows more than 18kA available at the panel, specify the THED.
What is the difference between the TED136050 and the TED134050?
Voltage class. The "6" designates 600V and the "4" designates 480V maximum.
Can the TED136050 be used in a motor control center?
Yes. The bolt-on connection suits MCC buckets and other vibration-prone installations, and it is listed for GE A-Series and Spectra assemblies.
What wire sizes does the TED136050 accept?

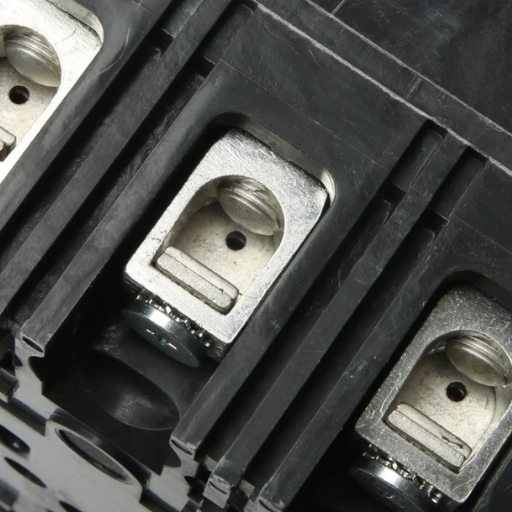

#14–2 AWG copper or #12–2 AWG aluminum through the supplied TCAL12 lugs.
Can the TED136050 be reverse fed?
Yes. Reverse feed is permitted with no line/load marking restriction under UL 489.
Is the 50A trip rating adjustable?
No. The trip unit is fixed and non-interchangeable.
Is the TED136050 UL listed?
Yes. It is UL 489 listed, CSA certified to C22.2 No. 5, CE marked, and HACR rated.
