TED136050WL - GE - E150 Bolt-On Molded Case Circuit Breaker with Lugs - 50 Amp - 3 Pole - 600 Volt
TED136050WL - GE - E150 Bolt-On Molded Case Circuit Breaker with Lugs - 50 Amp - 3 Pole - 600 Volt
Product images are representative only. Actual product may vary.

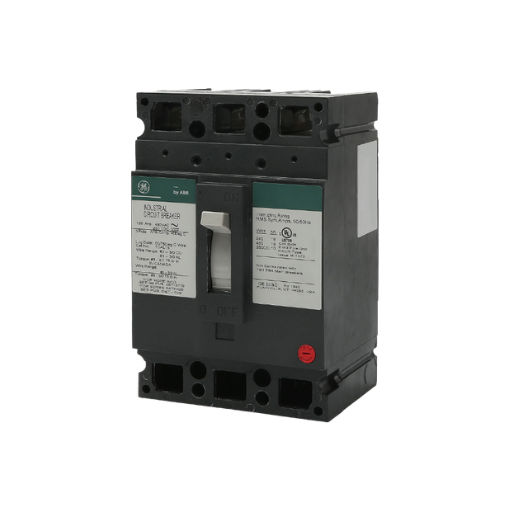

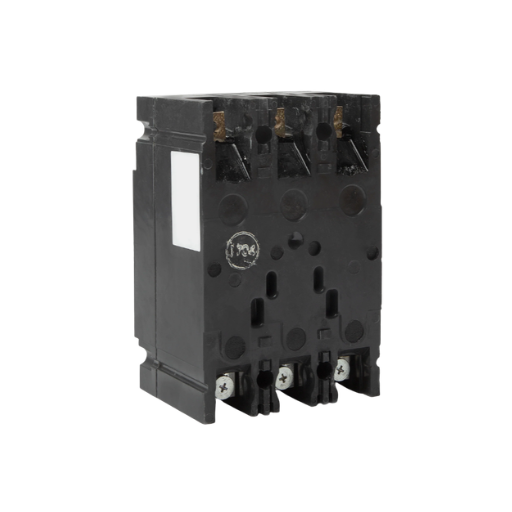

The GE TED136050WL is a 50A, 3-pole E150-frame molded case circuit breaker supplied with wire lugs, using bolt-on mounting and rated 600VAC for GE A-Series and Spectra panelboards, switchboards, and motor control centers.
The WL suffix identifies a factory catalog number that ships with TCAL12 wire lugs already included — no separate lug kit to source, which matters when you are buying spares or need a unit ready to terminate on arrival. Electrically it matches the base TED136050: fixed thermal-magnetic Long-Time and Instantaneous (LI) protection with an 18kA interrupting rating at 480VAC and 14kA at 600VAC. The bolt-on bus connection resists loosening under vibration, making it the standard choice for MCC buckets and switchboard sections. HACR and HID rated with reverse-feed capability.
Specifications
| Brand | GE / ABB (General Electric) |
|---|---|
| Series | E150 Line, Type TED |
| Part Number | TED136050WL |
| Amperage | 50A (150A frame) |
| Voltage | 600VAC, 480VAC, 240VAC, 500VDC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC (UL 489) |
| Mounting Style | Bolt-On |
| Terminal Type | Wire Lugs (included) |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers, E150 Enclosures |
| Trip Technology | Thermal Magnetic (LI — Long-Time, Instantaneous) |
| Trip Adjustability | Fixed Thermal / Fixed Magnetic |
| Wire Range | #14–2 AWG (Cu), #12–2 AWG (Al) |
| Accessories Included | TCAL12 Wire Lugs |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, HACR |
| Approvals | UL, CSA, CE |
| Construction Features | HACR Rated, HID Rated, Reverse Feed Capable, Non-Interchangeable Trip |
| Operating Temperature | 40°C |
| Shipping Dimensions | 12 x 9 x 9 in |
| Shipping Weight | 8 lb |
| Condition | New |
Frequently Asked Questions
What does the WL suffix mean on the TED136050WL?
WL stands for "with lugs." It is a factory catalog number that includes TCAL12 wire lugs, rather than requiring a separately ordered lug kit.
Is the TED136050WL interchangeable with the TED136050?
Yes. The two are electrically and mechanically identical; the only difference is factory-supplied lugs.
What is the interrupting rating of the TED136050WL?
18kA at 240VAC and 480VAC, 14kA at 600VAC, and 10kA at 250VDC and 500VDC.
When should I use a THED instead?
If your fault-current study shows more than 18kA available at the panel. The THED is the high-interrupting version of the same E150 frame, rated 25kA at 480VAC and 65kA at 240VAC.
What wire sizes do the included lugs accept?
#14–2 AWG copper or #12–2 AWG aluminum conductors.
Can the TED136050WL be reverse fed?
Yes. Reverse feed is permitted with no line/load marking restriction under UL 489.
Is the 50A trip rating adjustable?
No. The trip unit is fixed and non-interchangeable.
Is the TED136050WL UL listed?
Yes. It is UL 489 listed, CSA certified to C22.2 No. 5, CE marked, and HACR rated.
