GE - TEL136020WL – 20A 3-Pole 600V 65kA Feed-Thru Circuit Breaker w/ Wire Lugs
GE - TEL136020WL – 20A 3-Pole 600V 65kA Feed-Thru Circuit Breaker w/ Wire Lugs
Product images are representative only. Actual product may vary.

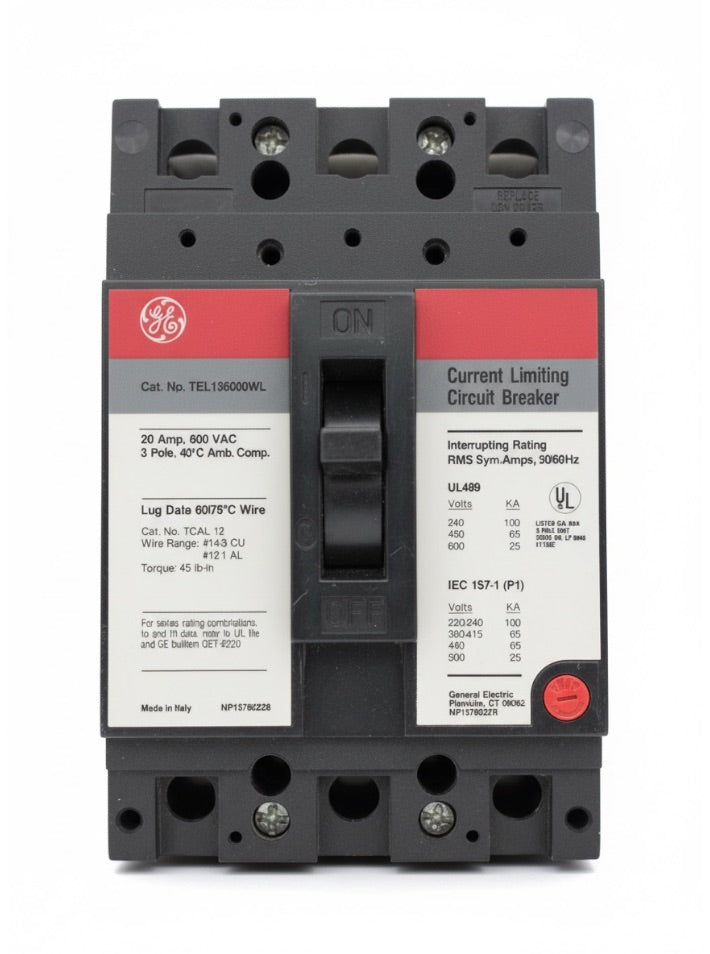

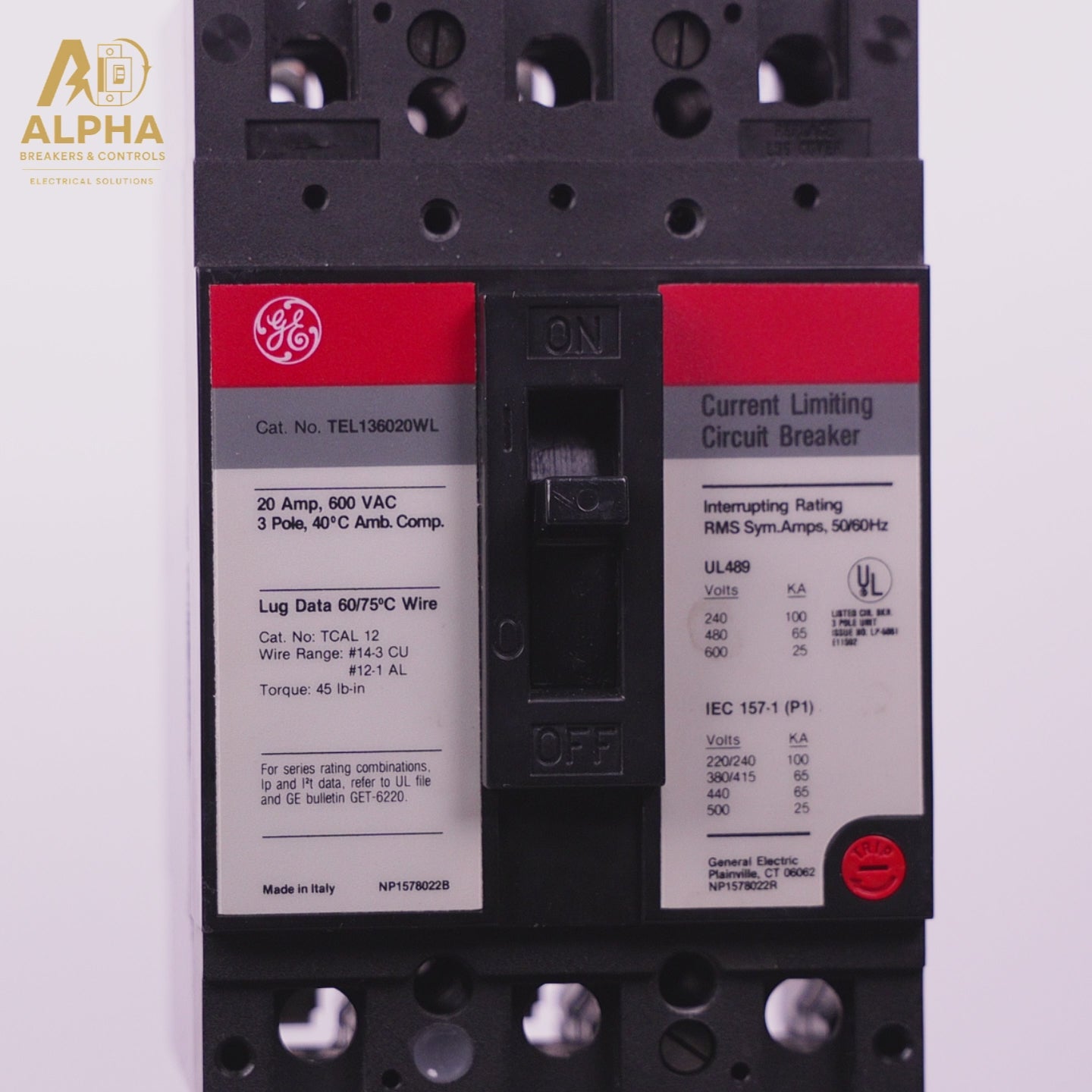

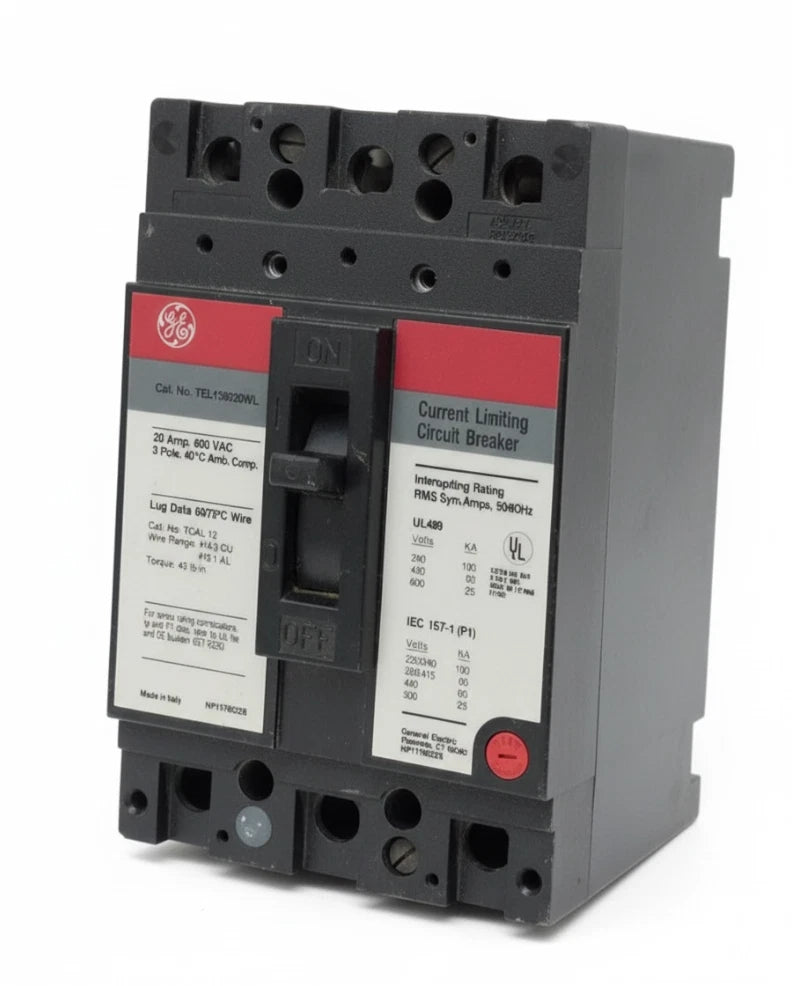

The GE TEL136020WL is a 3-pole, 20-amp thermal magnetic molded case circuit breaker rated for 600VAC with an exceptional interrupting capacity of 65kA @ 480V. The factory-installed wire lugs (WL) and Feed-Thru mounting configuration make it the preferred choice for industrial panelboards and switchboards where high fault withstand capability and flexible conductor termination are required.
Key Specifications
| Part Number | TEL136020WL |
| Brand | GE / General Electric |
| Amperage | 20A |
| Poles | 3-Pole |
| Voltage Rating | 600VAC |
| Interrupting Capacity | 65kA @ 480V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru |
| Series / Frame | TEL High IC Series |
| Standard | UL 489, CSA C22.2 |
Features & Benefits
- 65kA @ 480V interrupting capacity — one of the highest IC ratings available in a 20A 3-pole breaker, engineered for demanding industrial environments

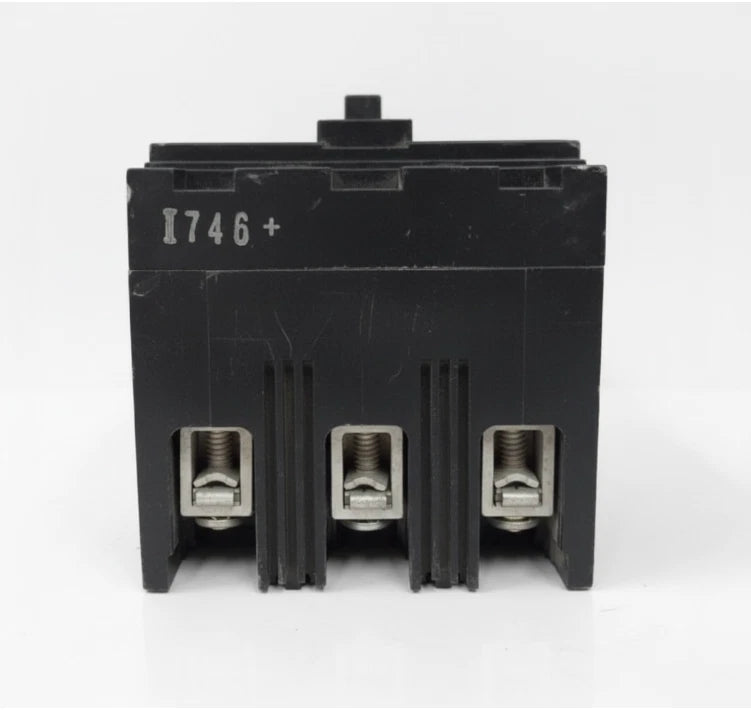

- Factory wire lugs (WL) — accepts larger conductors for flexible field wiring without adapters
- Feed-Thru mounting — compatible with GE TEL-frame panelboards and switchboards
- Thermal magnetic trip for accurate overload and short-circuit protection
- UL 489 listed and CSA C22.2 certified for North American code compliance
The GE TEL High IC Series delivers industry-leading interrupting capacity in a compact molded case form factor. With 65kA at 480V, the TEL136020WL is designed for industrial facilities where utility transformers and parallel generation sources create high available fault currents that would exceed the ratings of standard breakers. The wire lug option ensures conductor flexibility for tight panelboard installations.
Typical Applications
- Industrial branch circuit protection in high-fault 480V and 600V environments
- Manufacturing plants, refineries, and process facilities
- Branch circuits within motor control centers requiring high IC ratings
- Replacement for GE TEL-frame breakers in existing switchboards
Frequently Asked Questions
Q: What is the interrupting capacity of the TEL136020WL?
A: The TEL136020WL has an interrupting capacity of 65kA at 480V — significantly higher than standard industrial breakers — making it suitable for high-fault industrial systems.
Q: What does "WL" mean on the TEL136020WL?
A: WL denotes factory-installed wire lugs, which allow connection of larger conductor sizes not accommodated by standard terminals.
Q: Is the TEL136020WL UL listed?
A: Yes, it is UL 489 listed and CSA C22.2 certified for use in North American industrial electrical systems.
