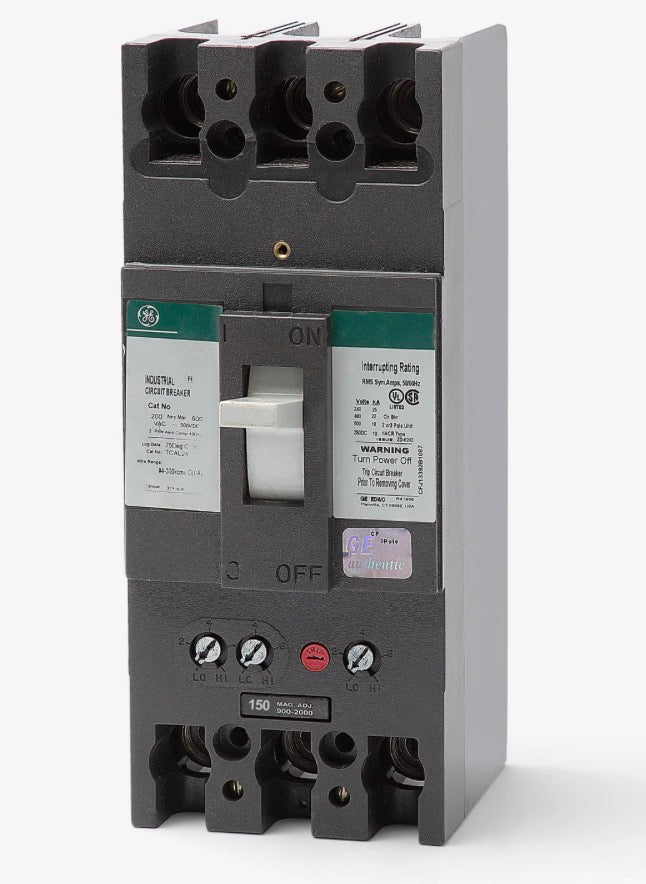

TFJ236150WL - General Electrics - Molded Case Circuit Breakers Feed-Thru - 150 Amp - 3 Pole - 600 V
New
$1,850.00
Sale price
$1,850.00
Regular price
Skip to product information
TFJ236150WL - General Electrics - Molded Case Circuit Breakers Feed-Thru - 150 Amp - 3 Pole - 600 V
$1,850.00
Sale price
$1,850.00
Regular price
Product images are representative only. Actual product may vary.
Description
A dependable choice for commercial facilities, the GE TFJ236150 is a 3-pole, 150A molded case circuit breaker. This bolt-on MCCB is engineered to install into GE A-Series and legacy J-Line panelboards. It includes load side lugs and replaces older TFK236150 and THFK236150 models. Featuring a 22kAIC rating at 480VAC, the breaker utilizes a non-interchangeable thermal-magnetic trip unit. It is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236150 |
| Series | TFJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE J-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
