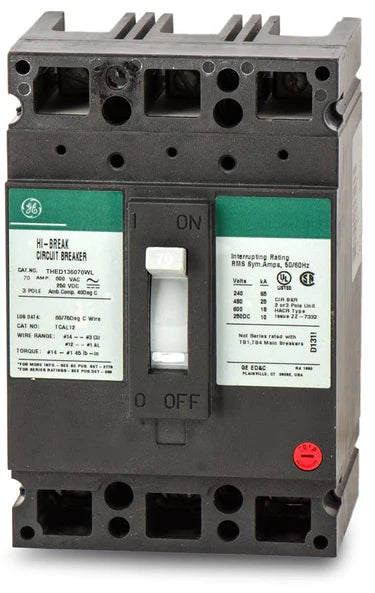

GE THED136070 – 70 Amp, 3-Pole High-Interrupting Molded Case Circuit Breaker
The GE THED136070 is a 70-amp, 3-pole thermal-magnetic molded case circuit breaker (MCCB) from General Electric's E150 line, Type THED — the high-interrupting version of the TED frame. Rated 600 VAC / 250 VDC with a 25 kAIC interrupting rating at 480V, it provides Long-Time and Instantaneous (LI) trip protection with a non-interchangeable trip unit in a feed-thru configuration, complete with line and load side lug terminals.
Key Specifications
| Part Number | THED136070 |
| Manufacturer | General Electric (GE / ABB) |
| Series / Type | E150 Line, Type THED (high-interrupting) |
| Amperage | 70 A |
| Poles | 3 |
| Voltage Rating | 600 VAC / 250 VDC |
| Interrupting Rating | 25 kAIC @ 480V |
| Trip Type | Thermal-magnetic, LI, non-interchangeable |
| Connection | Feed-Thru |
| Special Markings | HACR, SWD |
| Certifications | UL Listed |
| Shipping Package | 10 x 8 x 8 in |
Features
- High 25 kAIC @ 480V interrupting capacity — a step up from the standard TED frame
- Thermal-magnetic trip with Long-Time and Instantaneous (LI) protection
- Dual AC/DC rating: 600 VAC / 250 VDC
- HACR and SWD special markings
- Complete with line and load side lug terminals
- UL Listed for commercial and industrial applications
Applications
The THED136070 protects branch circuits and feeders in commercial and industrial panelboards, switchboards, and control equipment where available fault current exceeds the reach of standard-interrupting breakers — including motor circuits, HVAC equipment, and general distribution at up to 600 VAC.
Frequently Asked Questions
What is the difference between the GE THED136070 and TED136070?
Both are 70A, 3-pole E150-line breakers; the THED is the high-interrupting version, rated 25 kAIC @ 480V versus the TED's standard rating.
What is the interrupting rating of the THED136070?
It is rated 25 kAIC at 480V.
Can the THED136070 be used on DC systems?
Yes — it carries a dual rating of 600 VAC / 250 VDC.
