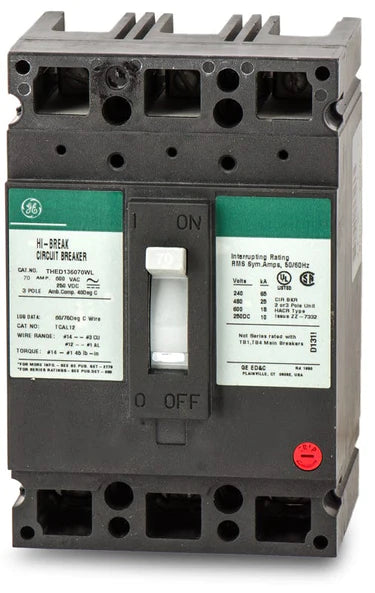

GE THED136070WL – 70 Amp, 3-Pole High-Interrupting Circuit Breaker with Lugs
The GE THED136070WL is a 70-amp, 3-pole thermal-magnetic molded case circuit breaker (MCCB) from General Electric's E150 line, Type THED — the high-interrupting version of the TED frame. Rated 600 VAC / 250 VDC with a 25 kAIC interrupting rating at 480V, it provides Long-Time and Instantaneous (LI) trip protection. The WL suffix indicates it ships with line and load side lug terminals installed, ready for field wiring.
Key Specifications
| Part Number | THED136070WL |
| Manufacturer | General Electric (GE / ABB) |
| Series / Type | E150 Line, Type THED (high-interrupting) |
| Amperage | 70 A |
| Poles | 3 |
| Voltage Rating | 600 VAC / 250 VDC |
| Interrupting Rating | 25 kAIC @ 480V |
| Trip Type | Thermal-magnetic, LI, non-interchangeable |
| Connection | Feed-Thru, with line & load lugs (WL) |
| Special Markings | HACR, SWD |
| Certifications | UL Listed |
| Shipping Package | 10 x 8 x 8 in |
Features
- Ships with line and load side lug terminals installed — ready to wire
- High 25 kAIC @ 480V interrupting capacity
- Thermal-magnetic trip with Long-Time and Instantaneous (LI) protection
- Dual AC/DC rating: 600 VAC / 250 VDC
- HACR and SWD special markings
- UL Listed for commercial and industrial applications
Applications
The THED136070WL protects branch circuits and feeders in commercial and industrial panelboards, switchboards, and control equipment where higher available fault current requires a high-interrupting breaker — including motor circuits, HVAC equipment, and general distribution at up to 600 VAC.
Frequently Asked Questions
What does the WL suffix mean on the THED136070WL?
WL indicates the breaker includes line and load side lug terminals, so it arrives ready for field wiring.
What is the interrupting rating of the THED136070WL?
It is rated 25 kAIC at 480V — the high-interrupting version of GE's E150 frame.
Is the THED136070WL interchangeable with the THED136070?
Yes — both share the same 70A/3-pole/600VAC ratings; the WL version simply includes the lug terminals.
