GE - THQD32200WL – 200A 3-Pole 240V High IC Feed-Thru Circuit Breaker w/ Wire Lugs
GE - THQD32200WL – 200A 3-Pole 240V High IC Feed-Thru Circuit Breaker w/ Wire Lugs

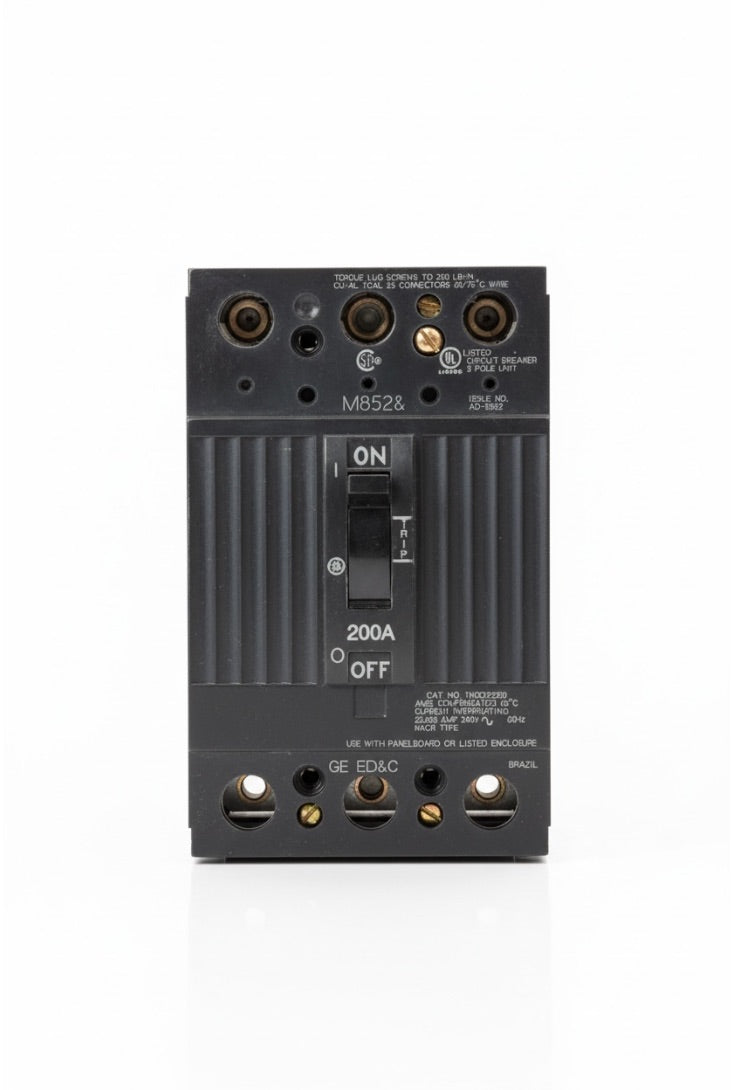

Product images are representative only. Actual product may vary.
The GE THQD32200WL is a 3-pole, 200-amp thermal magnetic molded case circuit breaker rated for 240VAC with a High Interrupting Capacity of 22kA and factory-installed wire lugs (WL). Part of GE's THQD High IC series, it delivers enhanced fault current handling in a Feed-Thru mounting configuration — making it ideal for service entrance and commercial distribution equipment with demanding conductor termination requirements.
Key Specifications
| Part Number | THQD32200WL |
| Brand | GE / General Electric |
| Amperage | 200A |
| Poles | 3-Pole |
| Voltage Rating | 240VAC |
| Interrupting Capacity | 22kA @ 240V (High IC) |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru |
| Series / Frame | THQD High IC Series |
| Standard | UL 489, CSA C22.2 |
Features & Benefits
- High IC rating — engineered for environments with elevated available fault current
- Factory wire lugs (WL) — accommodates larger service entrance conductors right out of the box
- Feed-Thru mounting — supports pass-through conductor routing in stacked metering applications
- Thermal magnetic trip for precise overload and instantaneous short-circuit protection
- UL 489 listed and CSA C22.2 certified for full North American code compliance
The GE THQD High IC Series is designed where standard TQD interrupting ratings are insufficient. The combination of High IC capability, Feed-Thru mounting, and factory wire lugs makes the THQD32200WL the go-to solution for service entrance equipment and large commercial panels where both fault withstand and conductor size matter.
Typical Applications
- Service entrance panelboards and switchboards at 240V
- Commercial and light industrial main distribution with elevated fault current
- Multi-tenant metering centers using Feed-Thru configurations
- Direct replacement for existing THQD-frame installations requiring wire lugs
Frequently Asked Questions
Q: What is the difference between the THQD32200WL and TQD32200WL?
A: The THQD series is the High IC variant, designed for systems with higher available fault currents. The TQD is the standard IC version.
Q: What does "WL" mean?
A: WL stands for Wire Lugs — factory-installed lug terminals for accommodating larger conductors required in 200A service applications.
Q: Is the THQD32200WL UL listed?
A: Yes, it is UL 489 listed and CSA C22.2 certified for North American electrical systems.
