GE TQD32200WL – 200A 3-Pole 240V Feed-Thru Circuit Breaker with Wire Lugs
GE TQD32200WL – 200A 3-Pole 240V Feed-Thru Circuit Breaker with Wire Lugs

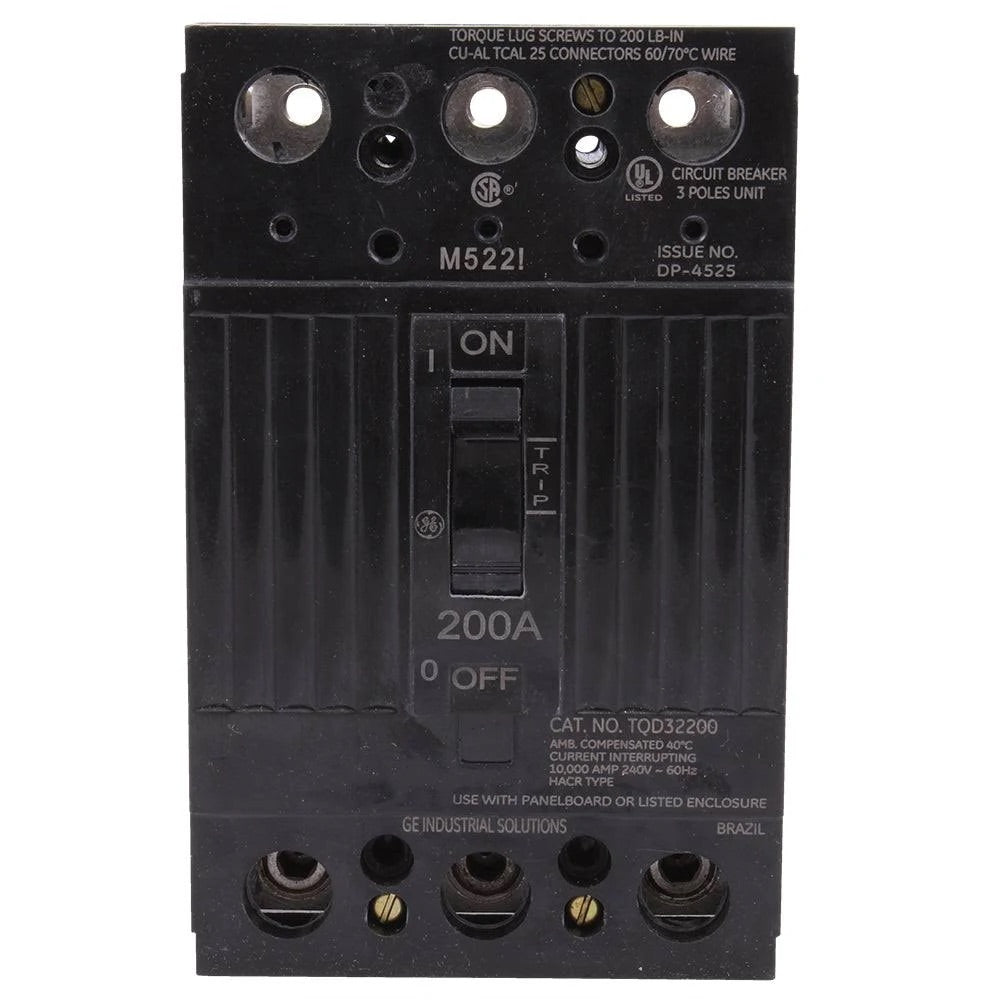

Product images are representative only. Actual product may vary.
The GE TQD32200WL is a 3-pole, 200-amp thermal magnetic molded case circuit breaker rated for 240VAC with an interrupting capacity of 22kA. The Feed-Thru mounting configuration and factory-installed wire lugs (WL) make this breaker the ideal solution for service entrance panels, load centers, and commercial distribution equipment where conductor termination flexibility is required.
Key Specifications
| Part Number | TQD32200WL |
| Brand | GE / General Electric |
| Amperage | 200A |
| Poles | 3-Pole |
| Voltage Rating | 240VAC |
| Interrupting Capacity | 22kA @ 240V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru |
| Series / Frame | TQD Series |
| Standard | UL 489, CSA C22.2 |
Features & Benefits
- Factory wire lugs included — accommodates larger conductors for service entrance and feeder applications
- 22kA interrupting capacity — reliable fault protection for commercial distribution systems
- Feed-Thru mounting — conductors pass through for downstream connections in stacked panel applications
- Thermal magnetic trip mechanism delivers precise, repeatable overcurrent and short-circuit protection
- UL 489 listed and CSA C22.2 certified for full North American code compliance
The GE TQD Series is a widely deployed thermal magnetic molded case circuit breaker platform trusted in commercial and light industrial service entrance equipment. The "WL" suffix indicates factory-installed wire lugs, which accept larger-gauge conductors than standard bolt-on terminals — critical for 200A service entrance and feeder applications governed by NEC conductor sizing requirements.
Typical Applications
- Service entrance panels and load centers at 240V
- Commercial main circuit protection and feeder distribution
- Multi-tenant buildings requiring Feed-Thru metering configurations
- Replacement breaker for GE TQD-frame equipment
Frequently Asked Questions
Q: What does the "WL" suffix mean on TQD32200WL?
A: "WL" stands for Wire Lugs — the breaker ships with factory-installed lug terminals that accommodate larger conductors required for 200A service entrance and feeder circuits.
Q: What is the interrupting capacity of the TQD32200WL?
A: The TQD32200WL has an interrupting capacity of 22kA at 240V, suitable for most commercial service entrance applications.
Q: Is the TQD32200WL UL listed?
A: Yes, it is UL 489 listed and CSA C22.2 certified for use in North American electrical systems.
