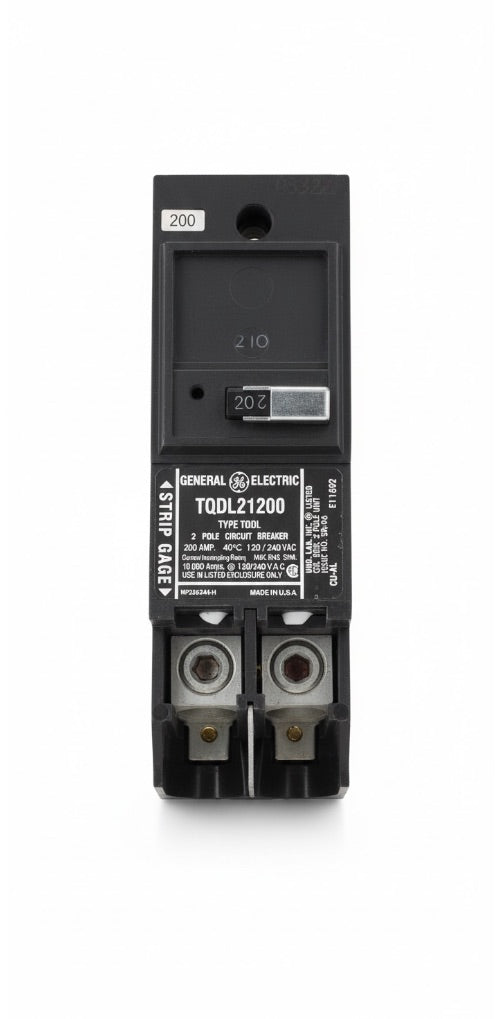

GE - TQDL21200 – 200A 2-Pole 120/240V Plug-In Molded Case Circuit Breaker
GE - TQDL21200 – 200A 2-Pole 120/240V Plug-In Molded Case Circuit Breaker
Product images are representative only. Actual product may vary.
The GE TQDL21200 is a 2-pole, 200-amp thermal magnetic molded case circuit breaker rated for 120/240VAC with an interrupting capacity of 10kA @ 120V. This Plug-In style breaker is designed for GE TQDL-compatible load centers and residential/light commercial panelboards where a 200A 2-pole main or sub-main breaker is required.
Key Specifications
| Part Number | TQDL21200 |
| Brand | GE / General Electric |
| Amperage | 200A |
| Poles | 2-Pole |
| Voltage Rating | 120/240VAC |
| Interrupting Capacity | 10kA @ 120V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Plug-In |
| Series / Frame | TQDL Series |
| Standard | UL 489, CSA C22.2 |
Features & Benefits
- 200A 2-pole rating — suitable for 200A residential and light commercial service entrance main breakers
- Plug-In mounting — installs directly into compatible GE TQDL load centers without additional hardware
- 10kA @ 120V interrupting capacity — adequate for residential and light commercial service entrance fault levels
- Thermal magnetic trip for reliable overload and short-circuit protection
- UL 489 listed and CSA C22.2 certified for North American code compliance
The GE TQDL Series is a plug-in style load center breaker designed for residential and light commercial distribution panels. The TQDL21200 is commonly used as the main breaker in 200A residential service panels, as a sub-main in commercial load centers, and as a replacement for existing GE TQDL-frame main breakers. Its plug-in design enables fast installation without bus bolt connections.
Typical Applications
- 200A residential service entrance and main breaker replacement
- Light commercial 120/240V load centers and distribution panels
- Sub-main circuit protection in commercial panelboards
- Direct replacement for GE TQDL-frame 200A 2-pole plug-in breakers
Frequently Asked Questions
Q: What is the interrupting capacity of the TQDL21200?
A: The TQDL21200 has an interrupting capacity of 10kA @ 120V, which is the standard rating for residential and light commercial service entrance applications.
Q: What mounting type does the TQDL21200 use?
A: Plug-In — it installs directly into compatible GE TQDL-rated load centers. Confirm panelboard compatibility before purchasing.
Q: Is the TQDL21200 UL listed?
A: Yes, it is UL 489 listed and CSA C22.2 certified for use in North American electrical systems.
