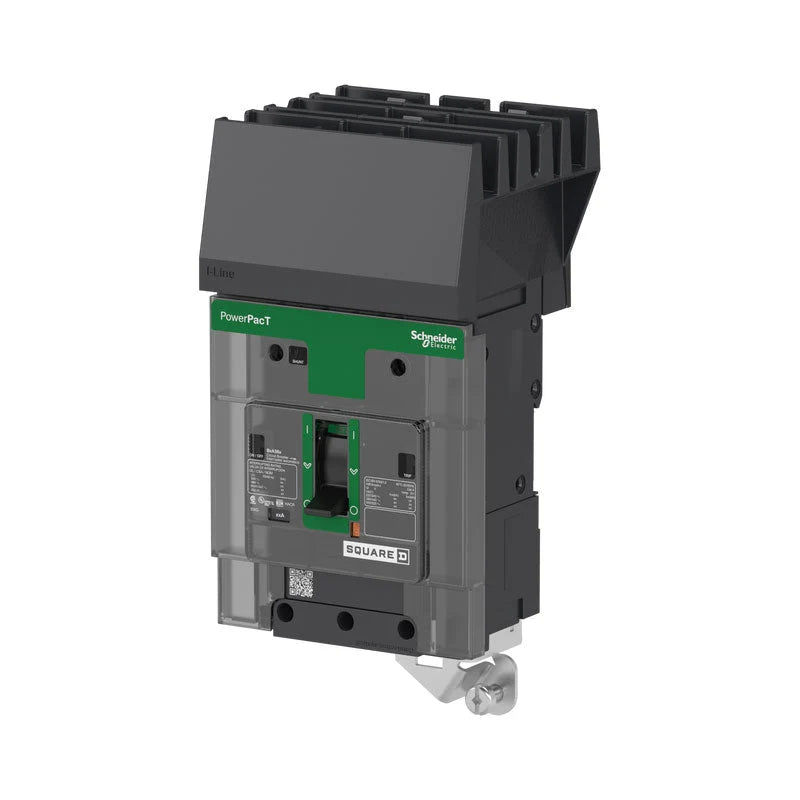

BGA36025 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 25 Amp - 3 Pole - 600 Volt
New
$734.99
Sale price
$734.99
Regular price
Skip to product information
BGA36025 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 25 Amp - 3 Pole - 600 Volt
$734.99
Sale price
$734.99
Regular price
Product images are representative only. Actual product may vary.
Description
Belonging to the Square D PowerPacT B-Frame family, the BGA36025 is a 3-pole, 25A molded case circuit breaker. It delivers consistent long-time and instantaneous (LI) protection for industrial systems. This unit mounts seamlessly into Square D I-Line panelboards using its plug-on line connection. It is the designated replacement for the discontinued FA36025. Featuring a 35kAIC rating at 480VAC, it handles high-fault conditions effectively and includes a push-to-trip mechanism.Specifications
| Brand | Square D |
| Series | BGA |
| Amperage | 25A |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
| Accessories | None included |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
