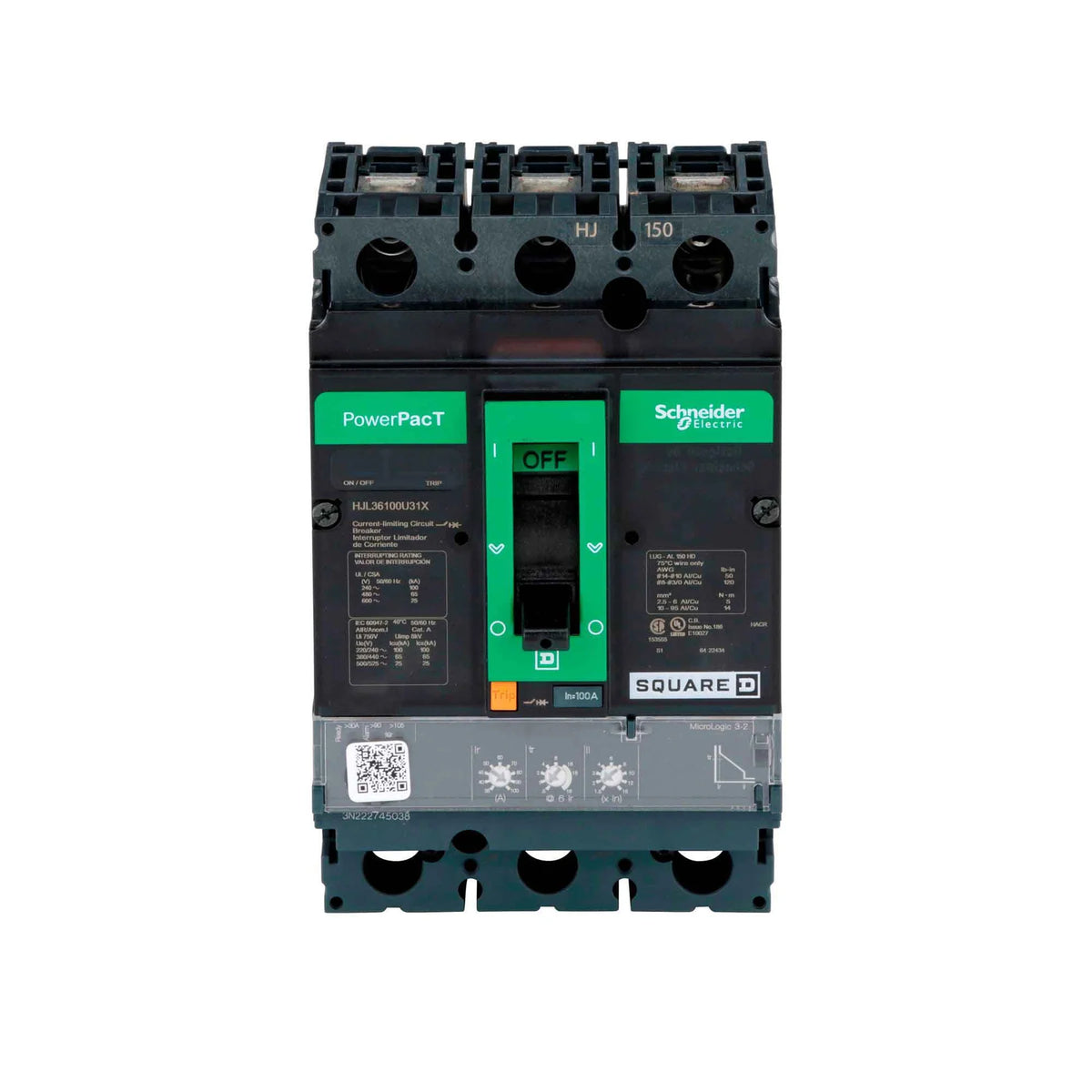

HJL36100U31X - Square D - Molded Case Circuit Breakers Feed-Thru - 100 Amp - 3 Pole - 600 V
New
$1,399.99
Sale price
$1,399.99
Regular price
Skip to product information
HJL36100U31X - Square D - Molded Case Circuit Breakers Feed-Thru - 100 Amp - 3 Pole - 600 V
$1,399.99
Sale price
$1,399.99
Regular price
Product images are representative only. Actual product may vary.
Description
Engineered for commercial and industrial power distribution, this 100A electronic trip MCCB incorporates a Micrologic 3.2 unit. The microprocessor-based sensing offers configurable long-time and instantaneous (LI) protection, improving coordination over standard thermal-magnetic options. This unit mount breaker installs into NQ or NF panelboards as a main, as well as standard enclosures. It serves as an upgrade path for discontinued FAL36100 legacy breakers. Rated 65kAIC at 480VAC.Specifications
| Brand | Square D |
| Series | HJL |
| Part Number | HJL36100U31X |
| Amperage | 100A |
| Amperage Range | 40-100A |
| Voltage | 240VAC, 480VAC, 600VAC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Mounting Style | Unit Mount |
| Terminal Type | Lugs |
| For Use With | Square D Industrial Control Panels, Switchboards, Enclosures, NQ Panelboards (as Main), NF Panelboards (as Main) |
| Trip Technology | Electronic Trip |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields |
| Accessories | Micrologic 3.2 Electronic Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Visual Trip Indicator, True RMS Sensing, Mercury Free, PVC Free |
