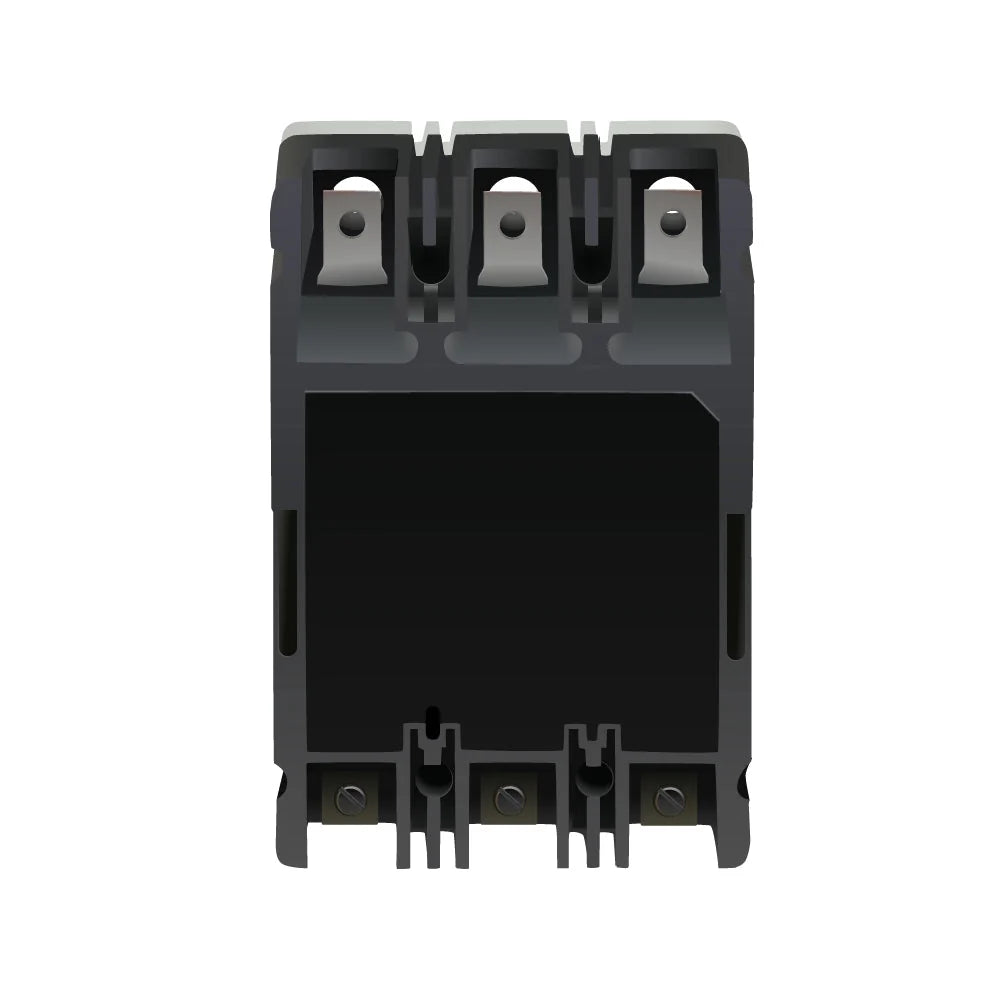

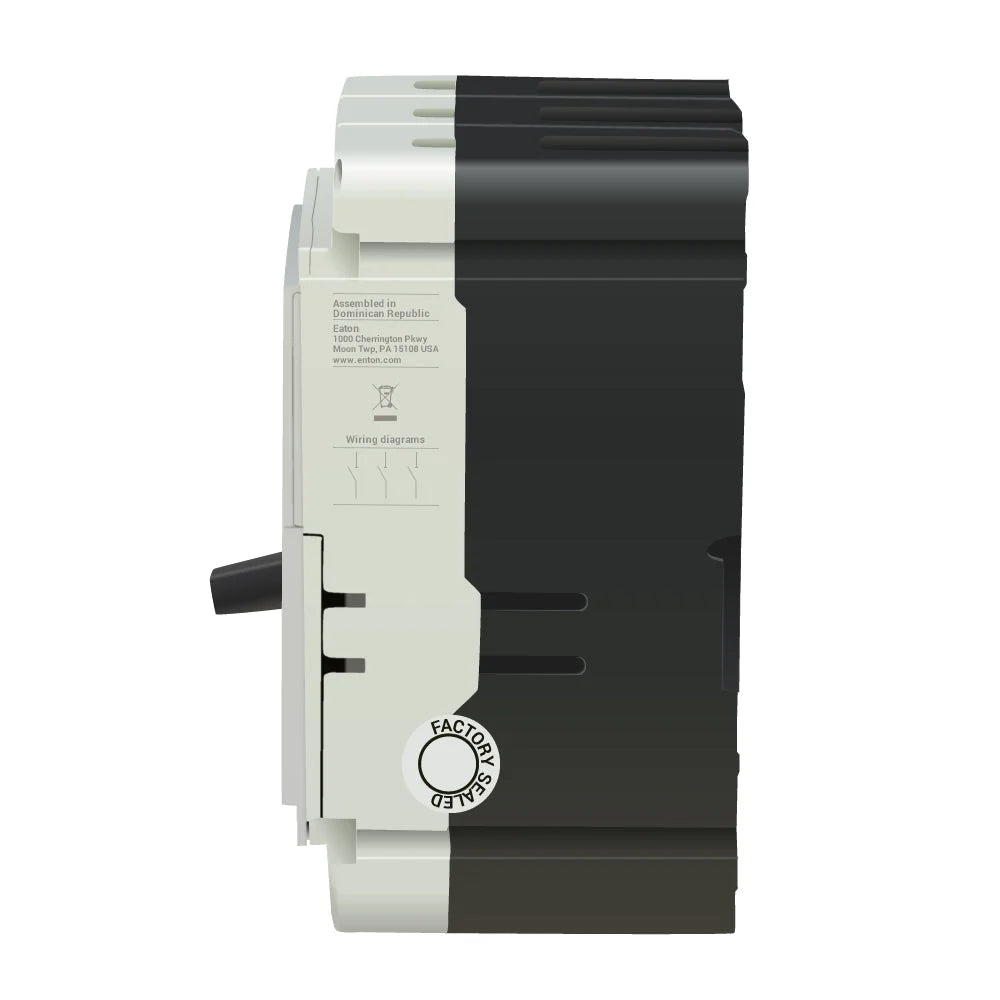

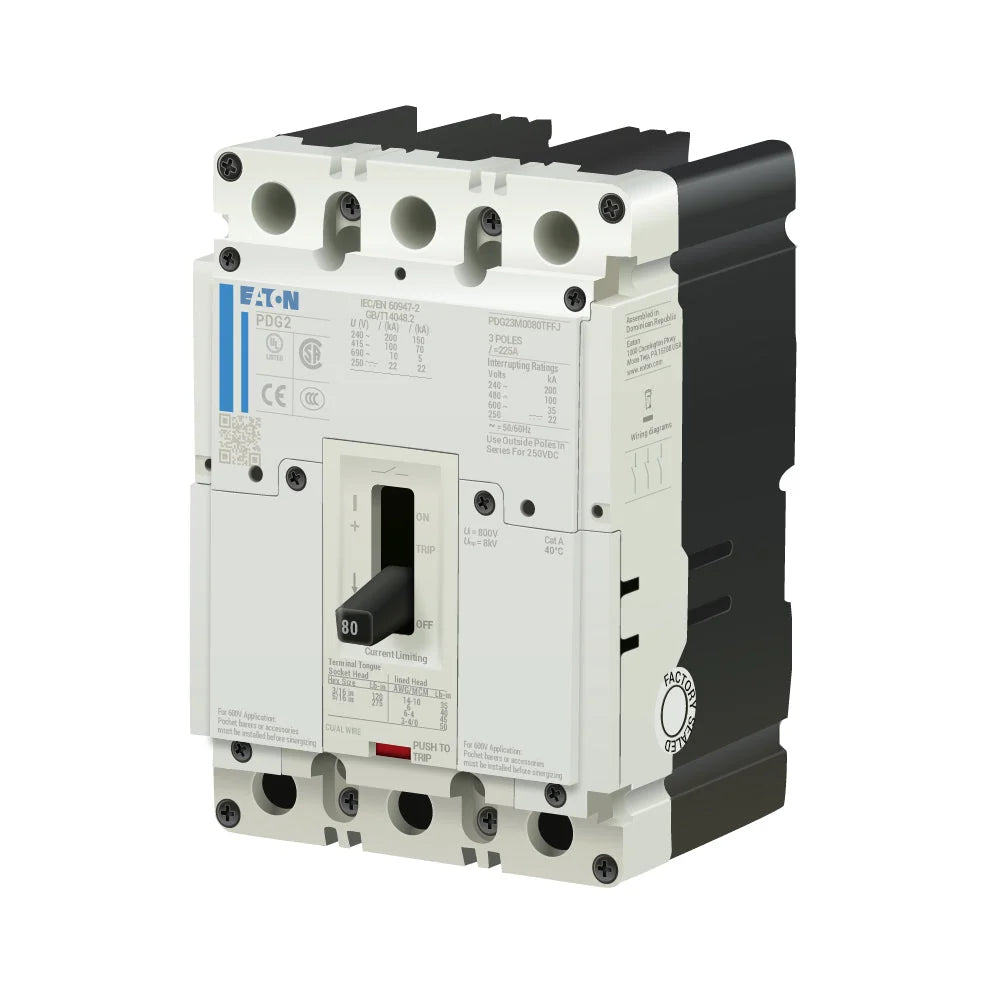

PDG23M0080TFFL - Eaton - Molded Case Circuit Breakers Feed-Thru - 80 Amp - 3 Pole - 600 Volt
$799.99
Sale price
$799.99
Regular price
Product images are representative only. Actual product may vary.
Description
Engineered for commercial and industrial applications, the Eaton PDG23M0080TFFL is a Frame 2 molded case circuit breaker from the Power Defense Global (PDG) series. It provides reliable 80A power distribution and integrates seamlessly into Eaton Power Defense enclosures and panelboards. Serving as a drop-in replacement for legacy HFD3080 and EGH3080 breakers, this 3-pole unit features a fixed thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection and a 65kAIC rating at 480V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Handle Lock |
|---|---|
| Accessories | Load Side Terminals (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, RoHS Compliant |
