Eaton PDG23M0110TFFJ – 110 Amp 3-Pole 600V Molded Case Circuit Breaker | Power Defense PDG2 Feed-Thru
Eaton PDG23M0110TFFJ – 110 Amp 3-Pole 600V Molded Case Circuit Breaker | Power Defense PDG2 Feed-Thru
Product images are representative only. Actual product may vary.
The Eaton PDG23M0110TFFJ is a 110 amp, 3-pole molded case circuit breaker (MCCB) from Eaton's Power Defense PDG2 frame, rated 600 VAC with a 65 kAIC interrupting rating at 480 VAC. This feed-thru breaker uses a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) protection, making it a dependable choice for panelboards, switchboards, and industrial power distribution.
Eaton PDG23M0110TFFJ Specifications
| Manufacturer | Eaton |
| Part Number | PDG23M0110TFFJ |
| Series | Power Defense, PDG2 Frame (Globally Rated) |
| Type | Molded Case Circuit Breaker (MCCB), Feed-Thru |
| Current Rating | 110 Amps |
| Number of Poles | 3 |
| Voltage Rating | 600 VAC |
| Interrupting Rating | 65 kAIC @ 480 VAC |
| Trip Unit | Thermal-Magnetic, Fixed-Fixed (Long-Time & Instantaneous) |

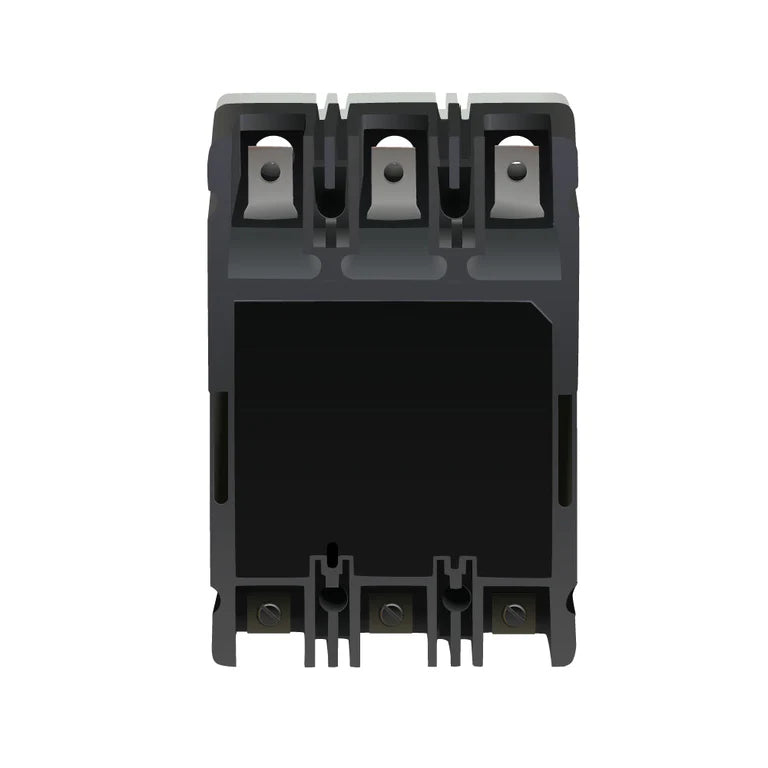

| Connection Type | Bolt-On, Standard Line and Load Terminals |
Key Features
- 110 A continuous current rating across three poles for 480–600 VAC systems
- High 65 kAIC interrupting capacity at 480 VAC for demanding fault conditions
- Thermal-magnetic trip unit with long-time and instantaneous protection
- Feed-thru configuration with bolt-on connections for secure installation
- Part of Eaton's globally rated Power Defense family, designed to UL, CSA, and IEC standards
Common Applications
The PDG23M0110TFFJ is used for overcurrent and short-circuit protection in commercial and industrial settings, including panelboards, switchboards, motor control centers, HVAC equipment, and machinery feeders operating at up to 600 VAC.
Frequently Asked Questions
What does the Eaton PDG23M0110TFFJ replace?
It is part of Eaton's Power Defense series, the modern successor to earlier Eaton/Cutler-Hammer molded case breaker lines in the PDG2 frame size (up to 250 A).
What is the interrupting rating of the PDG23M0110TFFJ?
65 kAIC at 480 VAC, indicated by the "M" in the catalog number.
Is this breaker adjustable?
No — it uses a fixed thermal-magnetic (Fxd-Fxd) trip unit with long-time and instantaneous protection.
